HARDWARE FEATURES

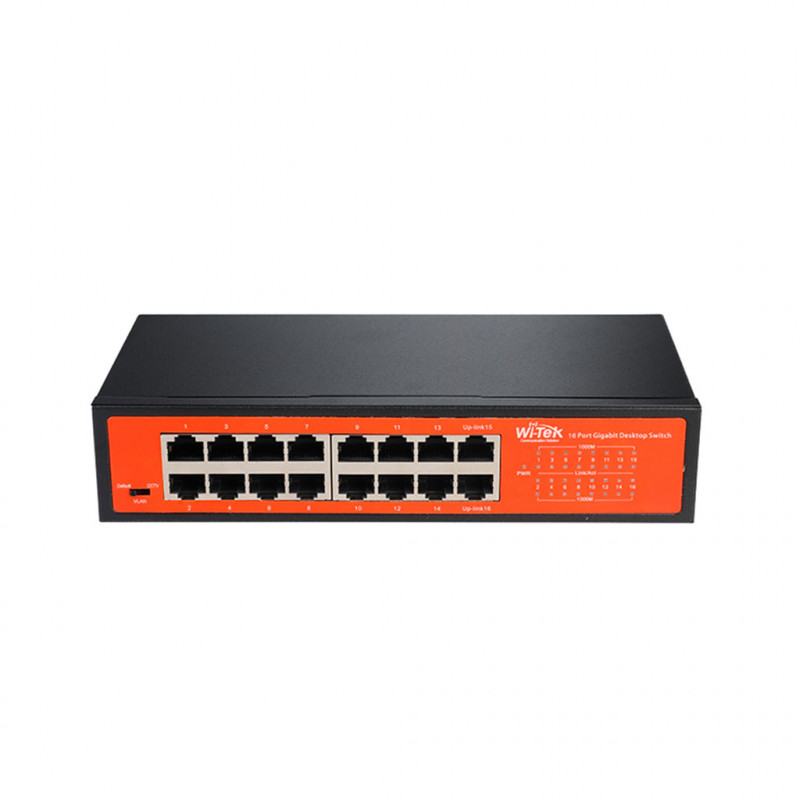

WI-SG116D

Standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p

Interface

16 100/1000Mbps RJ45 Ports

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

DIP Switch

Default / VLAN / CCTV

Fan Quantity

Fanless

Exchange Capacity

32G

Packet Forwarding Rate

23.8Mpps

Mac Address Table

8K

Power Adapter

AC IN: 110-240V

Packet Buffer Memory

4Mb

Jumbo Frame

10240 Bytes

Port VLAN

Yes

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

250×180×70 mm

Switch Dimension

210×105×45 mm

Gross Weight

1kg

Net Weight

0.64kg

Package Contents

1 × Gigabit Switch

1 × Power Cord

1 x Rack-mount Kit

1 xRubber Pad
1 × Quick Installation Guide

Working Temperature

-10℃～55℃

Storage Temperature

-40℃～70℃

Working Humidity

10%～90% RH

non-condensing

Storage Humidity

5%～90% RH non-condensing
