● 8 Gigabit PoE ports, 1 Gigabit RJ45port and 1 Gigabit SFP Slot
● Supports IEEE 802.3af/at 30W PoE

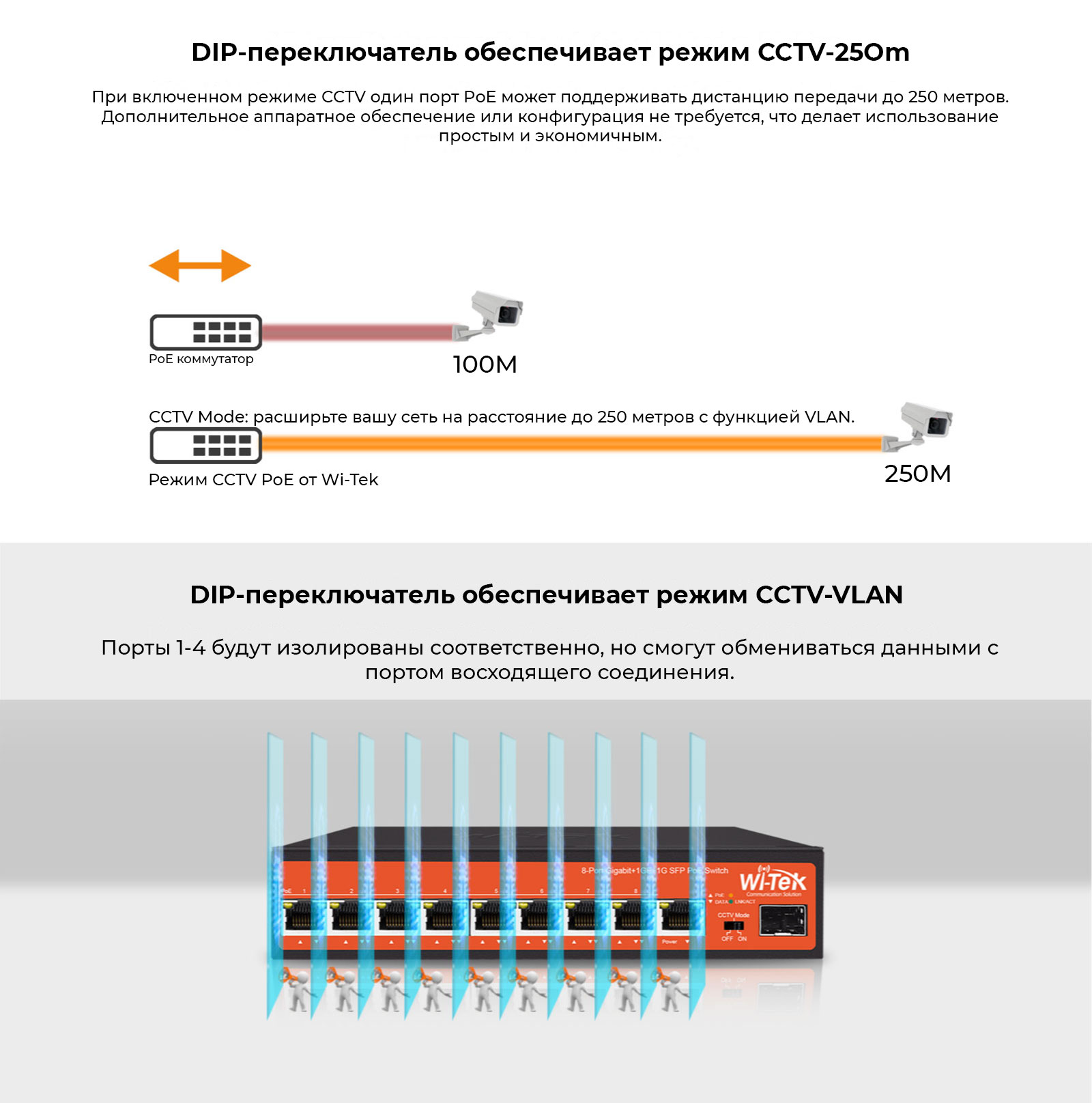

● CCTV Mode supports 250m long distance and port isolation function

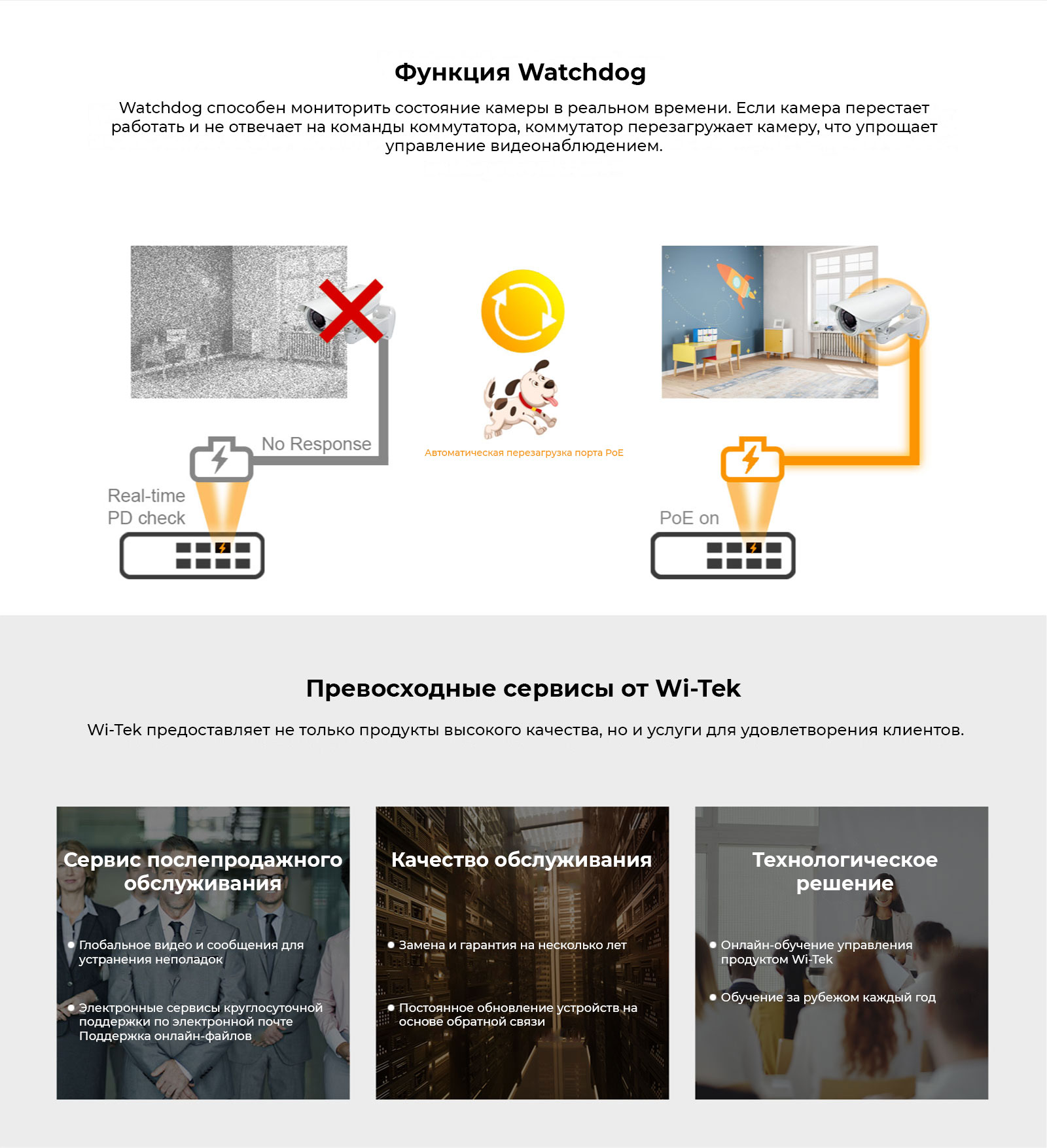

● PoE watchdog detects, reboots unresponsive PoE-powered devices
● PoE power budget can be up to 65W
● Plug and play with no configuration required
HARDWARE FEATURES
|
|
Hardware Version
| V1
|
Interface
| 8 1000Mbps RJ45 PoE Ports 1 1000Mbps RJ45 Ports 1 1000Mbps SFP Port
|
Network Media
| 10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m) 100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m)
|
Fan Quantity
| Fanless
|
Power Supply

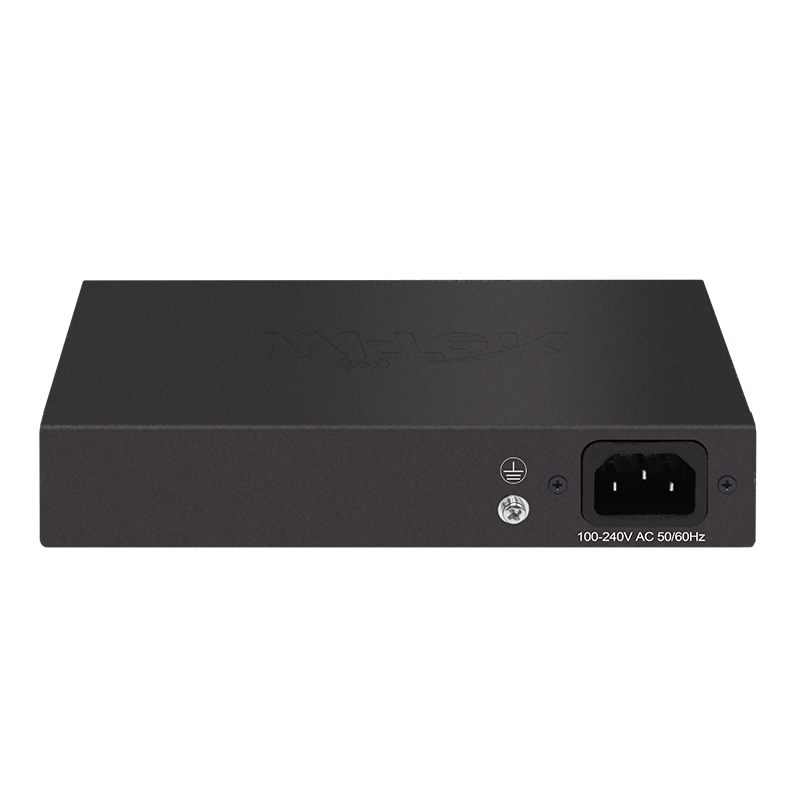

| AC 100~240V 50/60HZ
|
PoE Standard
| 802.3 af/at compliant PoE
|
PoE Ports
| Port 1-8
|
PoE Power Budget
| 65W
|
Mac Address Table
| 4k
|
Packet Forwarding Rate
| 14.88Mpps
|
Jumbo Frame
| 10kB
|
Protection Level
| Lightning protection 6KV 6KV ESD Contact discharge
|
Package Dimension
| 195×165×60 mm
|
Switch Dimension
| 170×95×33 mm
|
Gross Weight
| 0.8kg
|
Net Weight
| 0.5kg
|
Package Content
| 1 × Power cord 1 × Quick Installation Guide 1 × Switch
|
SOFTWARE FEATURES
|
|
Transmission Method
| Store - And - Forward
|
Advanced Functions
| Watchdog Function Mac Address Auto- Learning Auto-Aging Store and forward IEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex Mode
|
OTHERS
|
|
Certification
| CE , FCC , RoHS
|
Environment
| Operating Temperature: -10℃–55℃ (14℉–131℉) Storage Temperature: -40℃–70 ℃ (-40℉–158℉) O perating H umidity: 10– 90% RH non-condensing Storage H umidity: 5– 90% RH non-condensing
|
