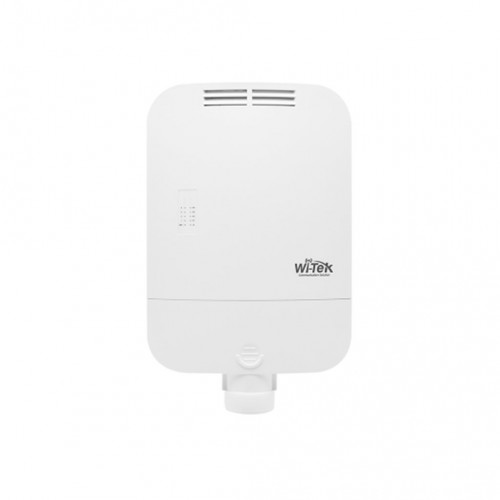

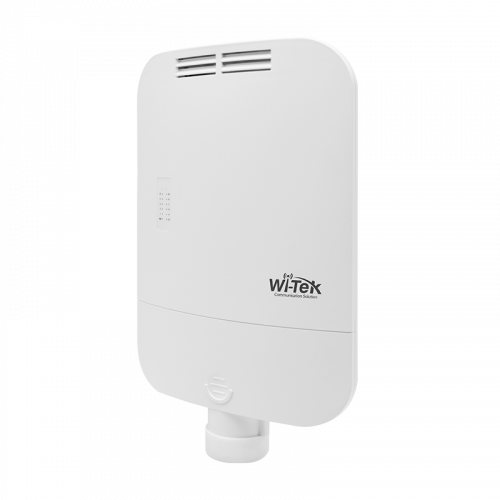

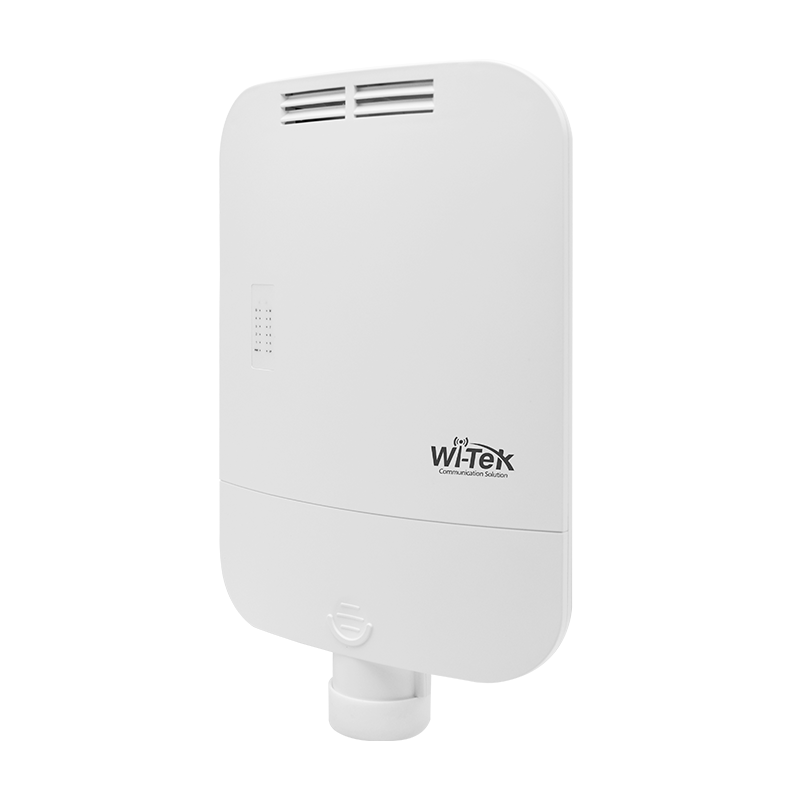

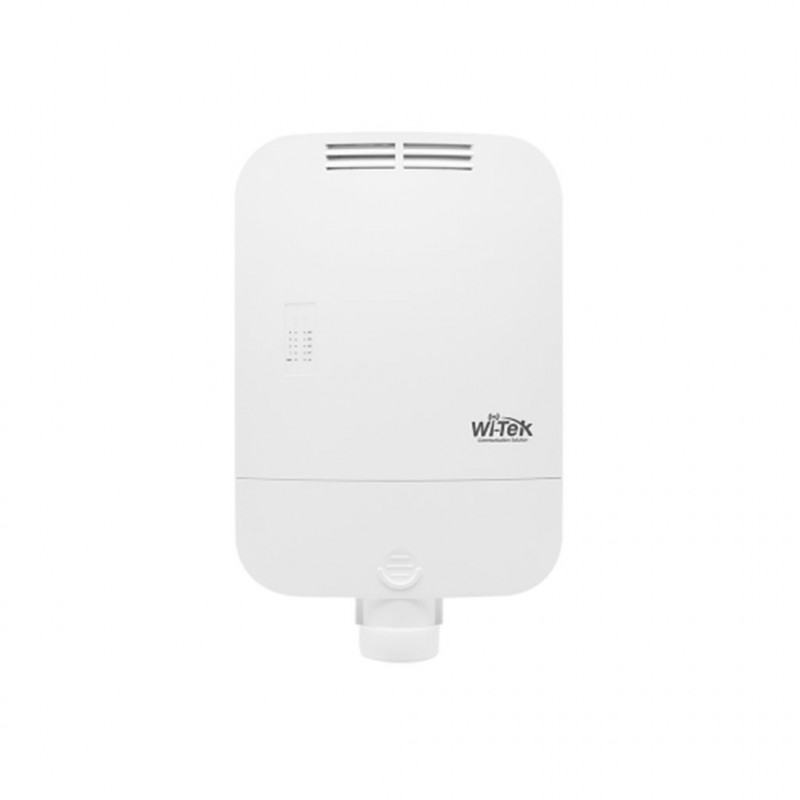

WI-PS309GF-O

Hardware Features

Hardware Version

 V1

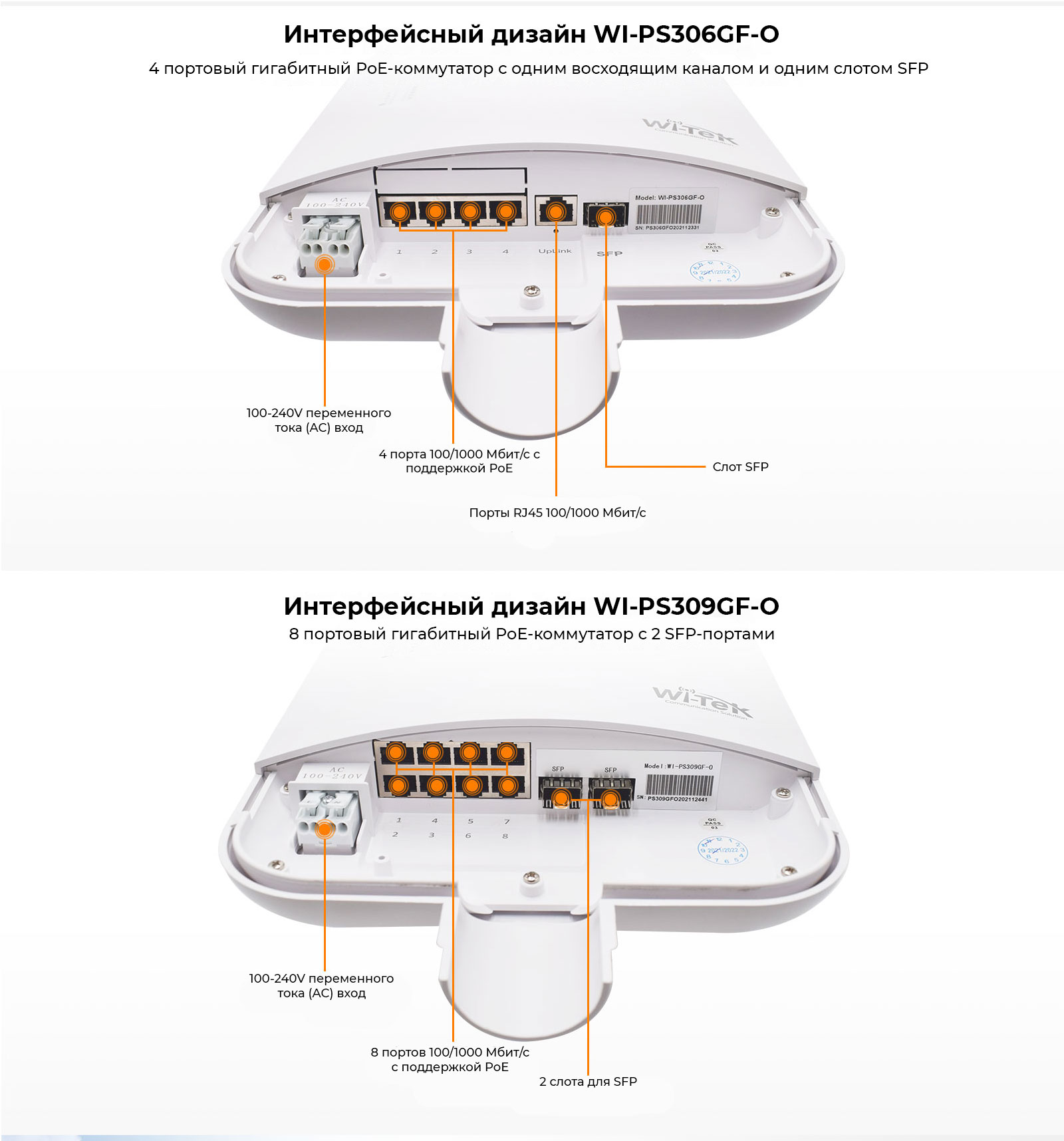

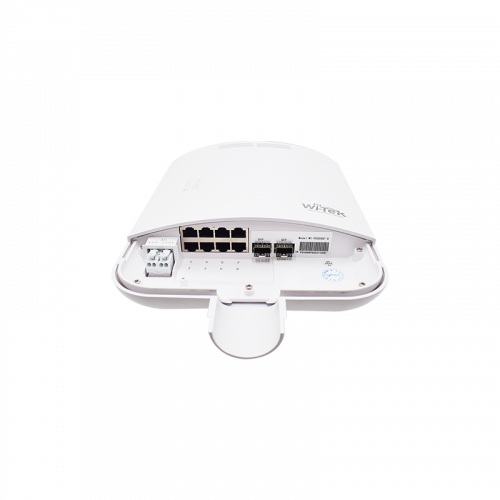

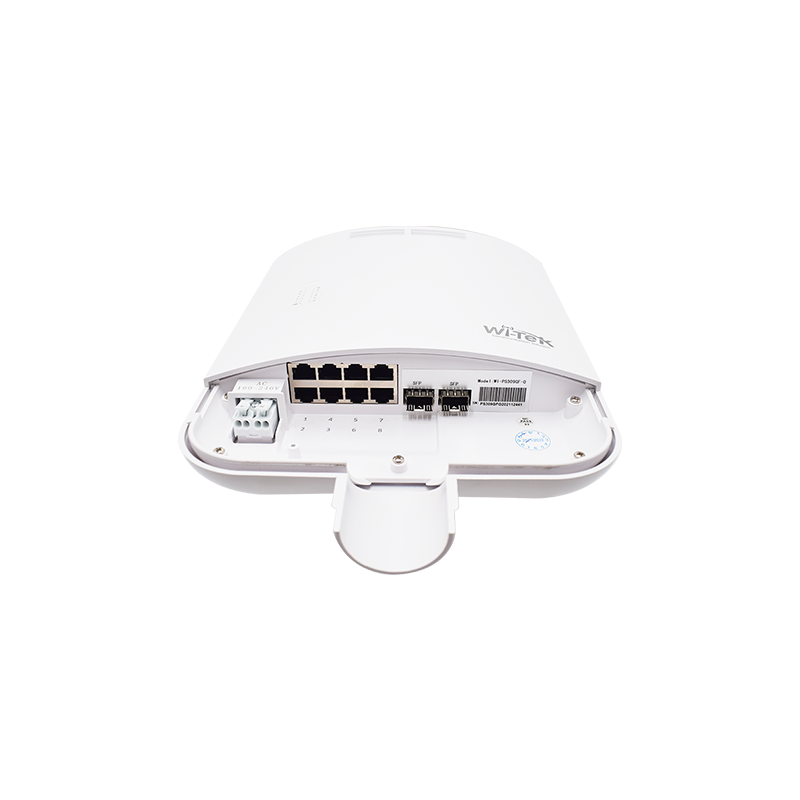

Interface

8 1000/1000Mbps RJ45 PoE Ports

2 100/1000Mbps SFP Slots

PoE Ports

Port 1-8: 802.3af/at

Network Media

10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m)

100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m)

1000BASE-TX: 6 Category and above UTP(≤150m)

Power Supply

AC 100-240V 50-60Hz

Power Budget

120W

Exchange Capacity

20Gbps

Packet Forwarding Rate

11.9Mpps

Mac Address Table

4k

Protection

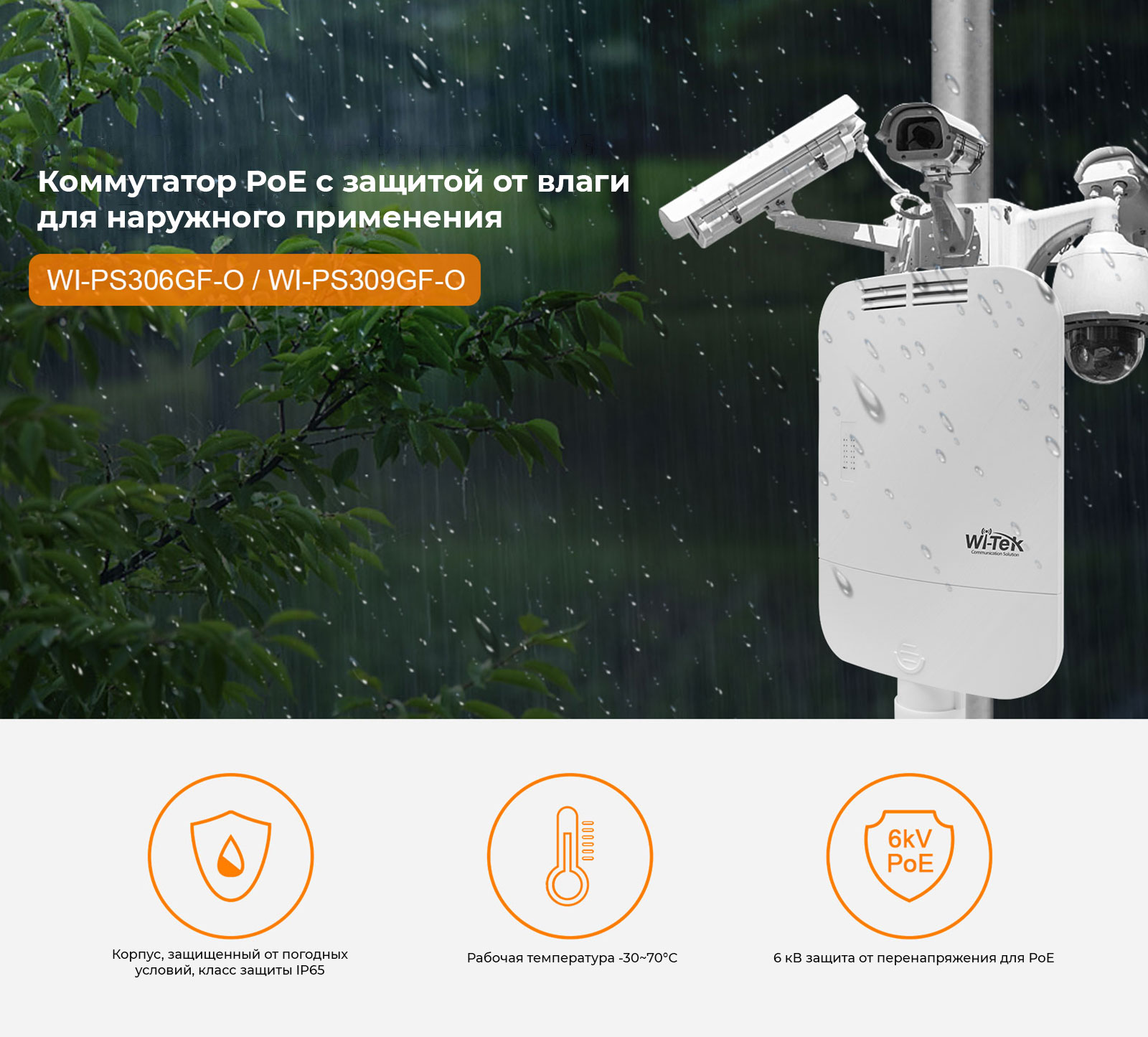

6kV PoE Surge Protection

10kV AC Surge Protection

Jumbo Frame

10240Bytes

SOFTWARE FEATURES

Advanced Functions

Mac Address Auto-Learning And Auto-Aging

Store and forward

IEEE 802.3x flow control for Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

 CE, FCC, RoHS

Package Dimension

370×240×76 mm

Switch Dimension

215×345×48 mm

Gross Weight

1.42kg

Net Weight

1.06kg

Package Contents

1 × PoE Switch

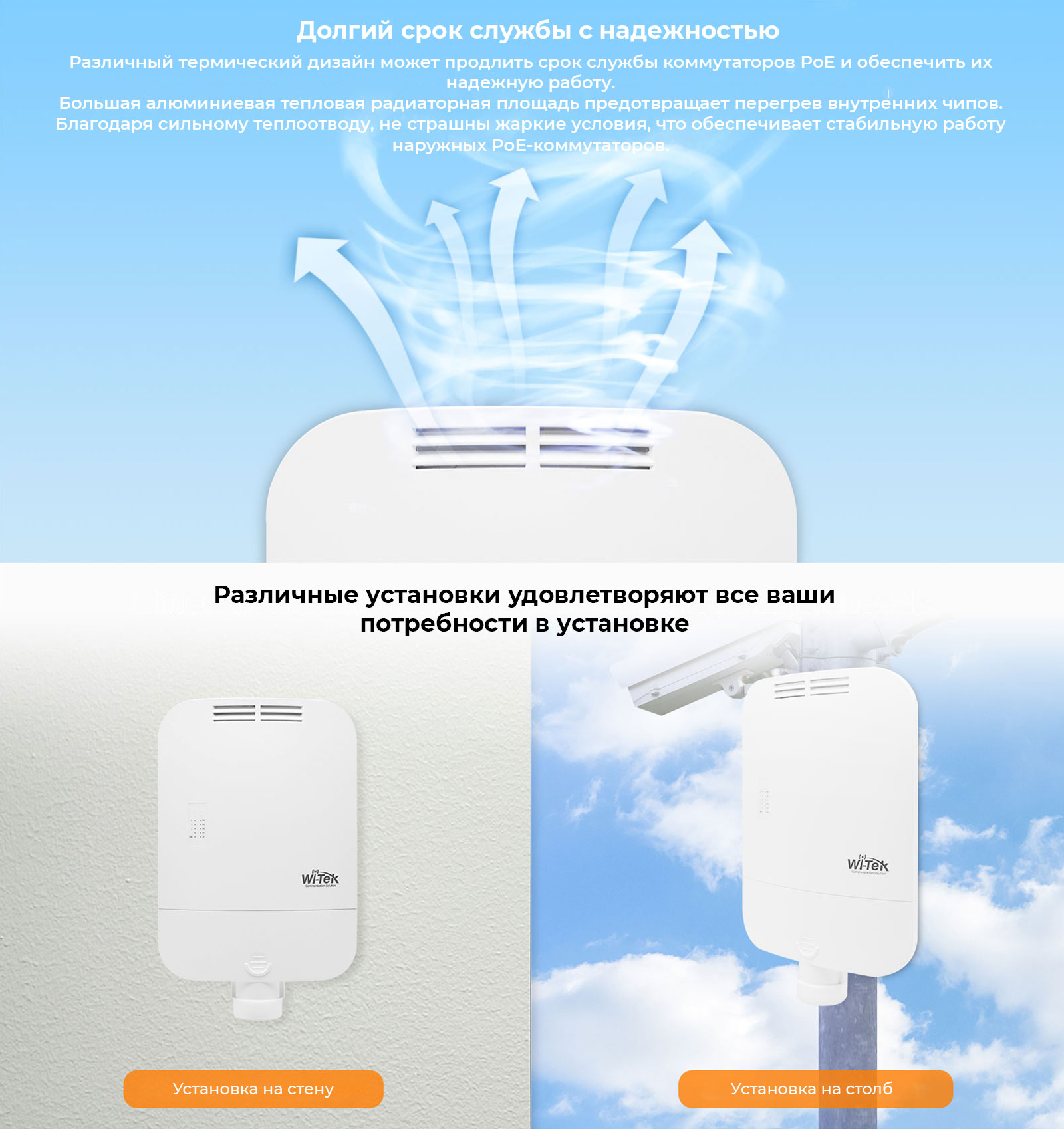

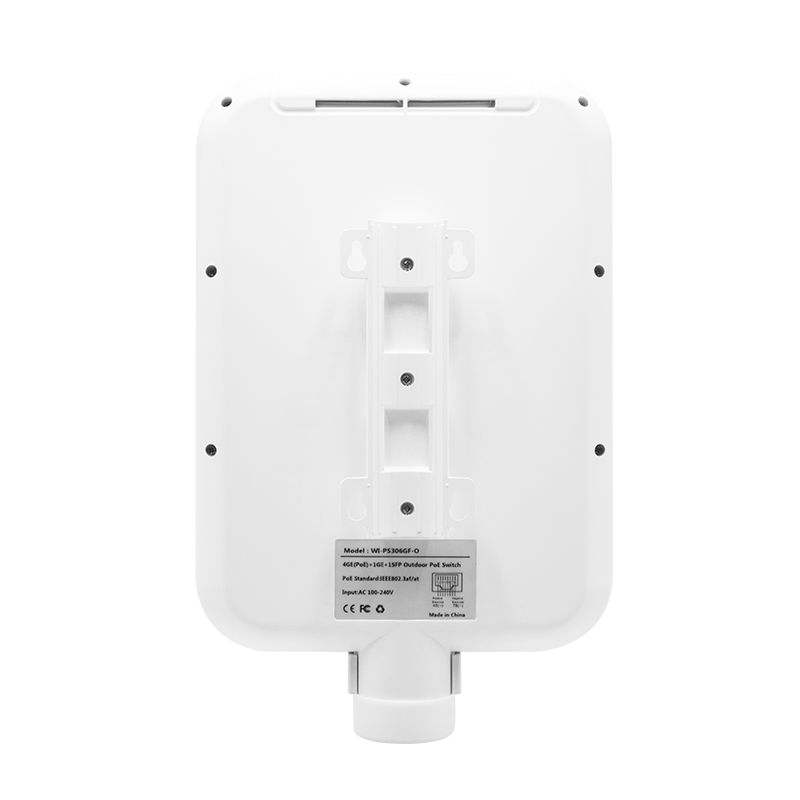

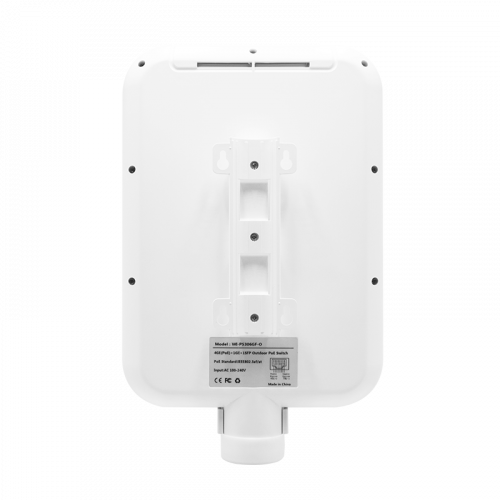

1 × Pole mounting KIT

1 ×Quick Installation Guide

Environment

Working Temperature: -30℃ ~70℃(22℉~158℉)

Storage Temperature: -40℃~70℃ (-40~158℉)

Operating Humidity: 10~90% RH non-condensing

Storage Humidity: 5~90% RH non-condensing
