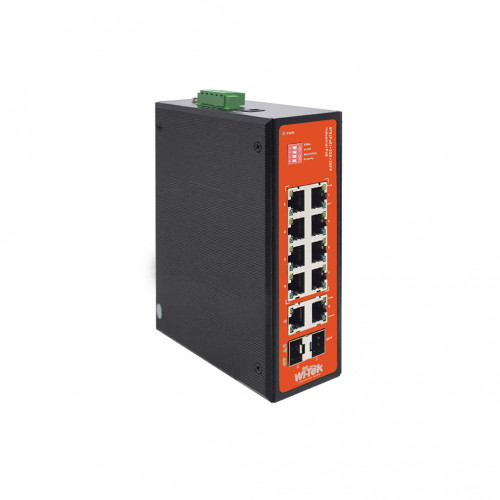

Model

WI-PS212GF-I

Hardware Version

V1

Ethernet Ports

Downlink Ports

8*10/100 Base-TX PoE RJ-45 (Auto-MDI/MDI-X)

Uplink Ports

2*1000 Base-X SFP

2*10/100/1000 Base-T RJ-45(Auto-MDI/MDI-X)

PoE

PoE Standard

Ports 1-8: 802.3 af/at PoE

PoE Power Supply Type

End-span

PoE Budget

240W

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,

IEEE 802.3x, IEEE 802.3az

Forwarding Modes

Store and forward

Packet Buffer

3.57M

MAC Table

2K

Switching Capacity

9.6Gbps / non-blocking

Packet Forwarding Rate

7.14Mpps

Jumbo Frame

10kB

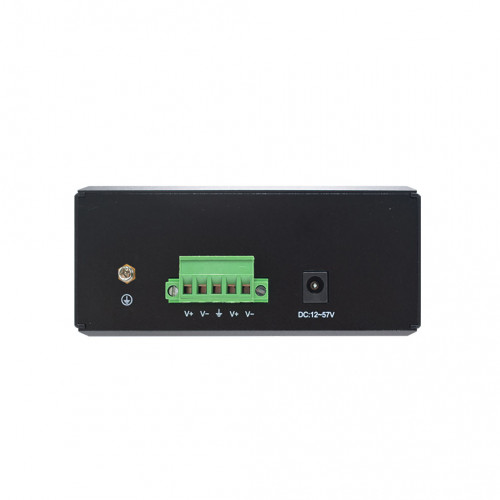

Power Supply

Input Voltage

Power 1 (Main): 48~55V DC

Power 2 (Backup): 48~55V DC

Power 3(DC Jack): 48~55V DC

Non-PoE: 12~39V DC

Reliability

Surge Immunity

6kV, Standard: IEC6000-4-5

ESD Protection

8kV Contact Discharge, 15kV Air Discharge, Standard: IEC61000-4-2

MTBF

about 30Wh

MTBF Standards

Telcordia SR-332，25℃

Operating Temperature

-30℃~65℃

Storage Temperature

-40℃~85℃

Operating Humidity

5%~95% (Non-condensation)

Physical Parameter

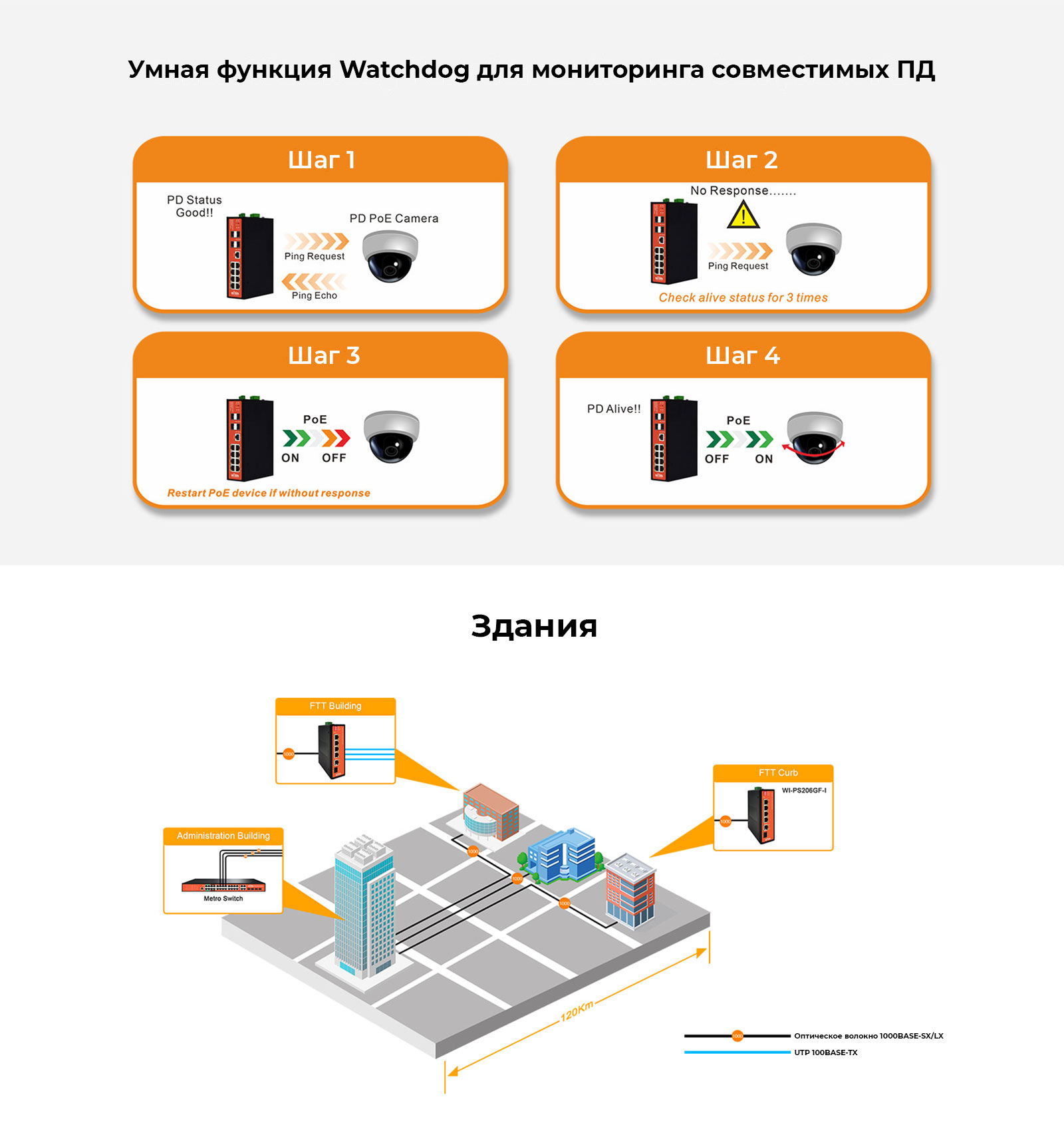

Dip Switch

250m/VLAN/Watchdog/Priority

Dimensions (W*D*H)

173*135*54mm

Net Weight

0.75kg

Installation

DIN-rail/wall mounted

Certifications

Certifications

CE, FCC
