Hardware Specifications

Hardware Version

V1

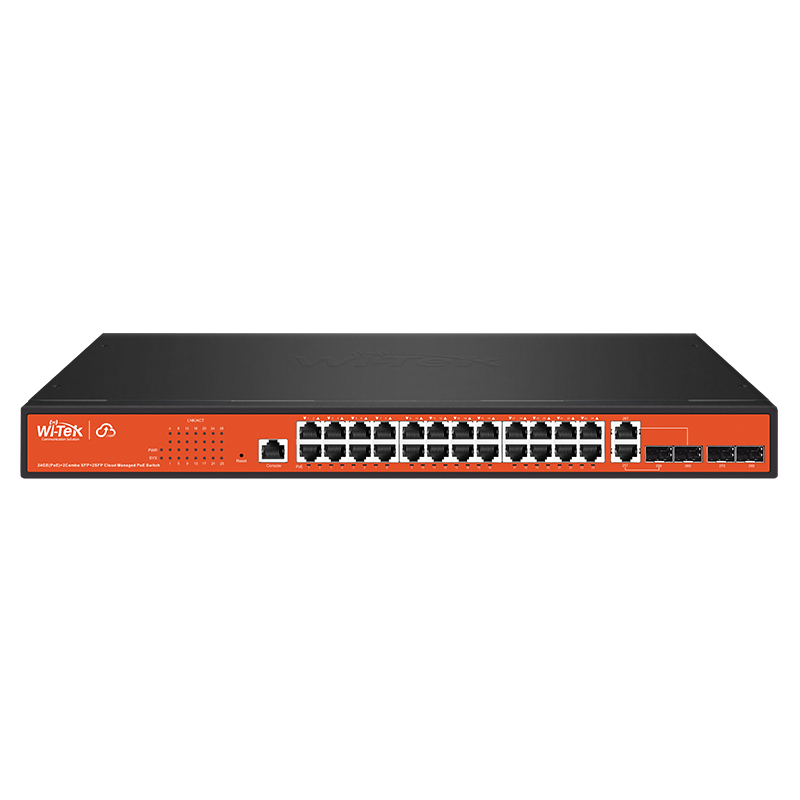

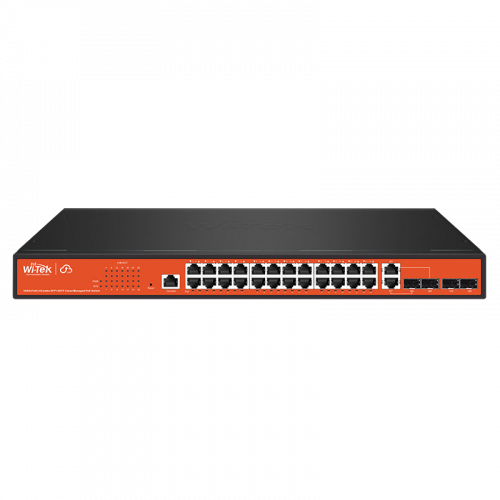

Interface

24x10/100/1000Mbps RJ45 Ports

2xGigabit Combo ports

2xGigabit SFP Slots

1xConsole Port

Port Standard

IEEE 802.3 i:10BASE-T Ethernet;

IEEE 802.3 u:100BASE-X Fast Ethernet;

IEEE 802.3ab:1000BASE-T Gigabit Ethernet;

IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber)

PoE

PoE Standard

802.3af/at

PoE Ports

24 up to 32W

PoE Power Budget

370W

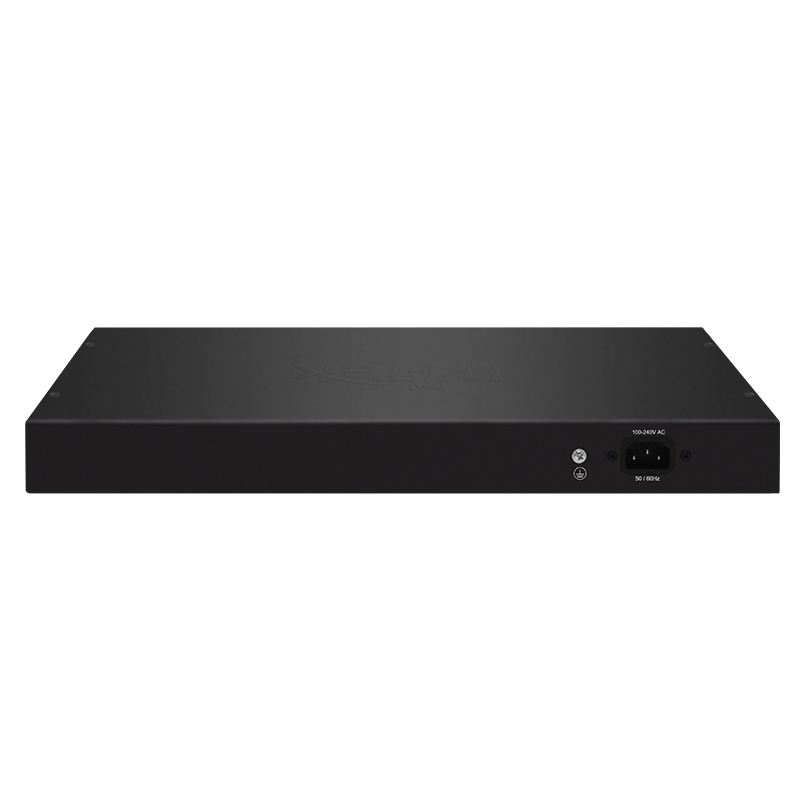

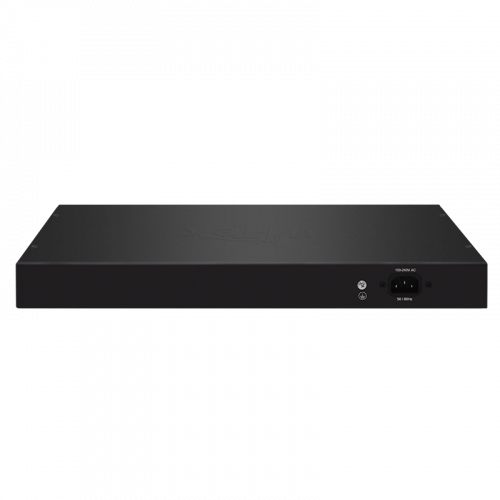

Power Supply

100-240 V AC~50/60 Hz

Switching Capacity

56Gbps

Packet Forwarding Rate

41.66Mpps

Jumbo Frame

9KB

MAC Address Table

8K

Dimensions ( W x D x H )

440*207*44mm

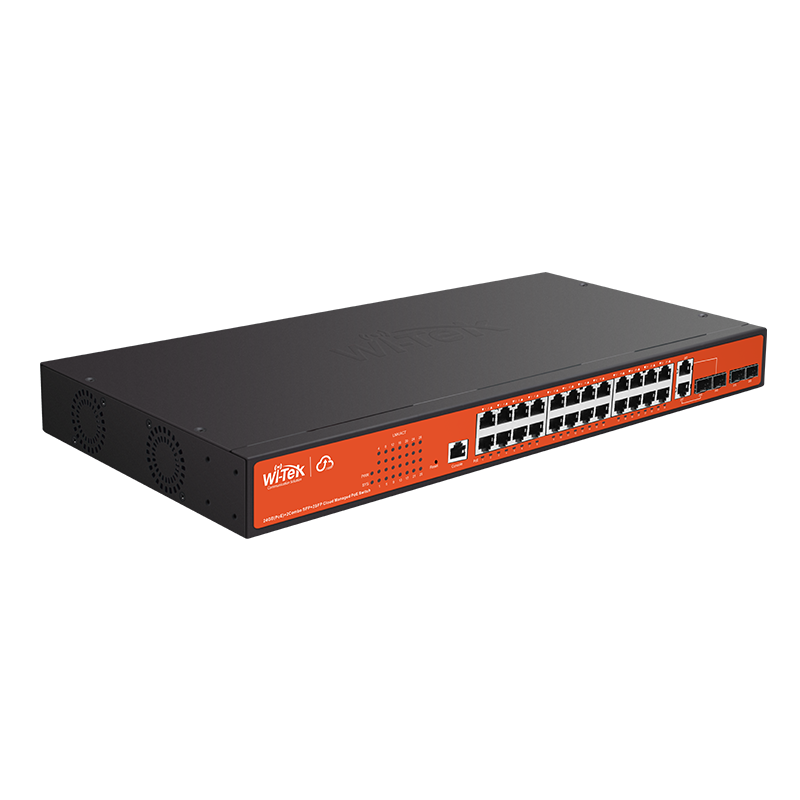

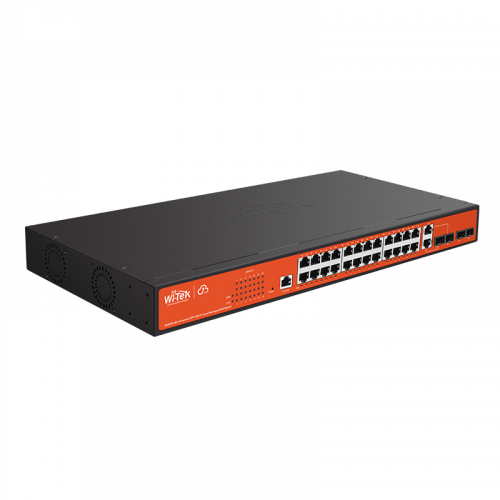

Fan Quantity

2 Fan

Protection Level

Common Mode ± 6KV, Differential Mode ± 4KV

Electrostatic Standard

Contact 6KV Air 8KV

Transmission Mode

Store— Forward

Installation

Rack- Mounted

Software Features

Spanning Tree

IEEE  802.1D - STP

IEEE  802.1w - RSTP

IEEE  802.1s - MSTP

BPDU Guard

STP Root Guard

Loop Detection

VLAN

Management VLAN

Private VLAN

Voice VLAN

Monitor VLAN

Q- in-Q

Protocol- Based VLAN

MAC- Based VLAN

Port

LACP

Static

EEE

Jumbo Frame

Error- Disable

Port mirroring( One-to-One Many-to-One Tx/Rx/Both)

Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group)

Security

Port Isolation

IEEE802.1x AAA

ACL support L2+/L3/ L4  IPv6 ACL

Dynamic ARP Protection

Broadcast Storm
