Wi-Tek WI-PCMS310GF PoE коммутатор

Name: Wi-Tek WI-PCMS310GF PoE коммутатор
Brand: Wi-Tek
SKU: WI-PCMS310GF
Price: 90900 KZT
Availability: InStock

Модель: WI-PCMS310GF

90 900 ₸

Datasheet

Официальный дистрибьютор

Работаем напрямую с заводом изготовителем

Доставка по всему Казахстану

Отправим любым удобным способом для Вас

Гарантия на оборудование 3 года

Официальная гарантия от представителя Wi-Tek

Описание

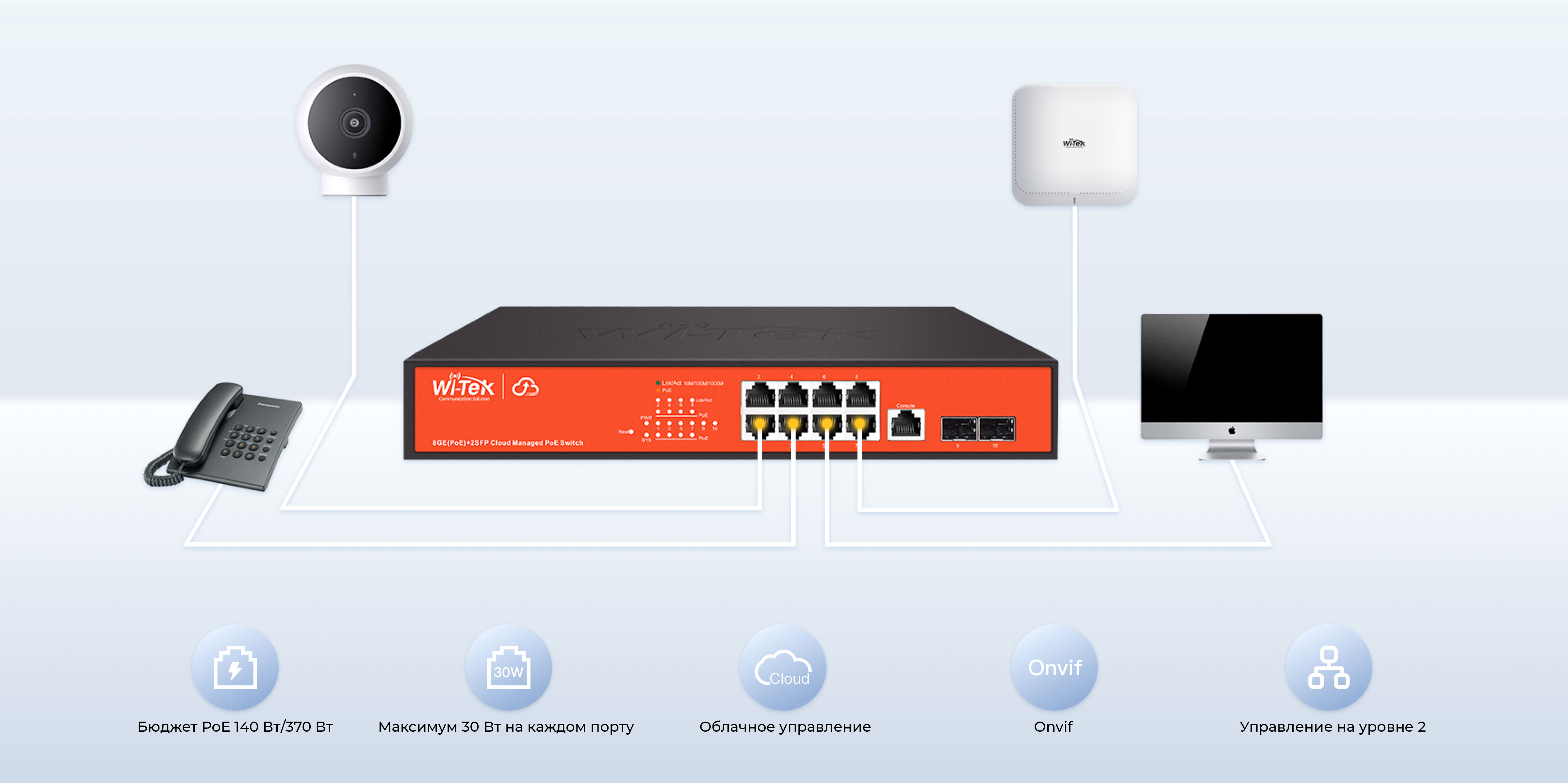

● 8 Gigabit PoE ports and 2 Gigabit SFP slots
● 8 802.3af/at PoE ports with a total power supply of 140W

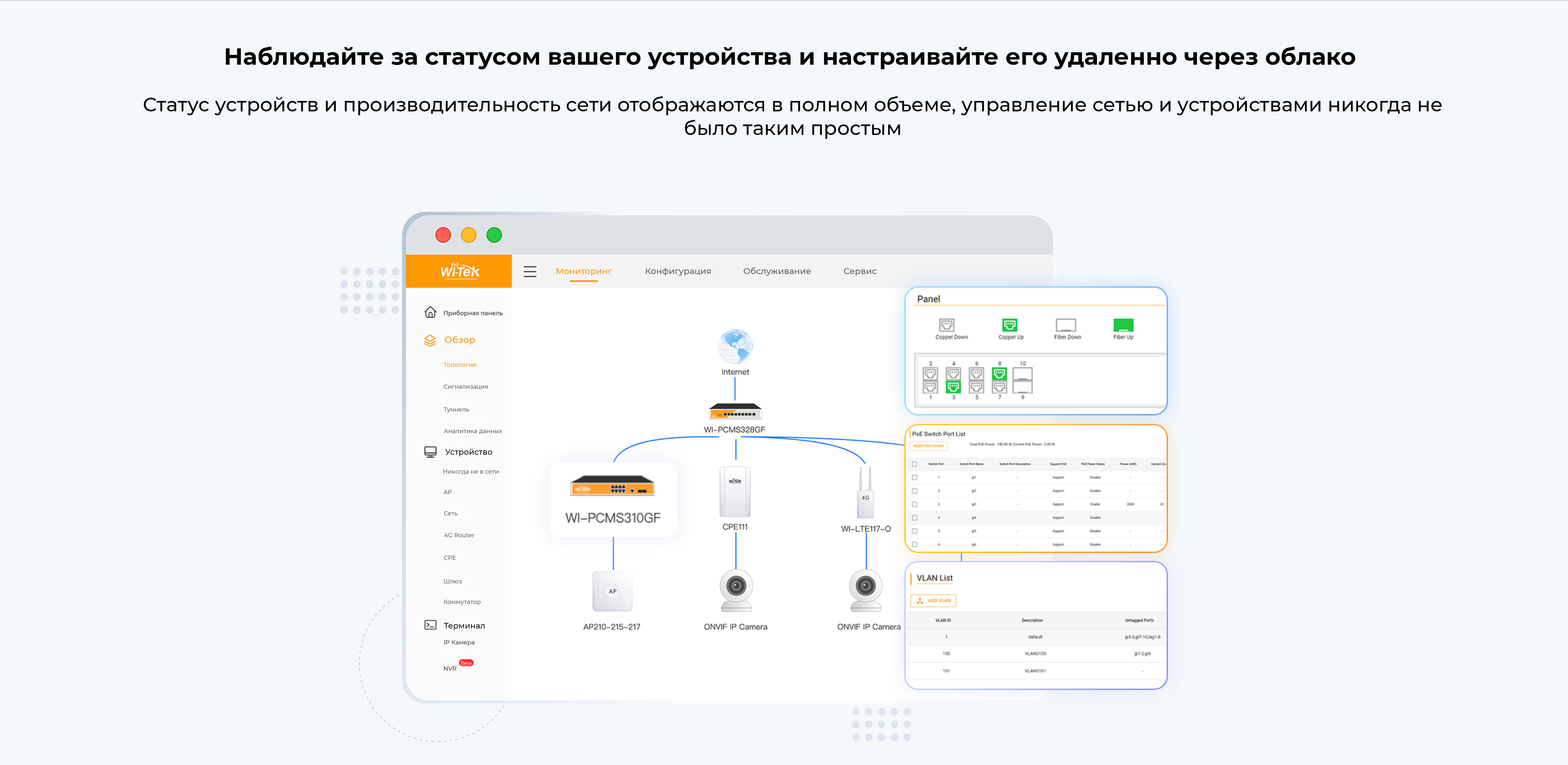

● Support cloud management, easy to maintain and manage

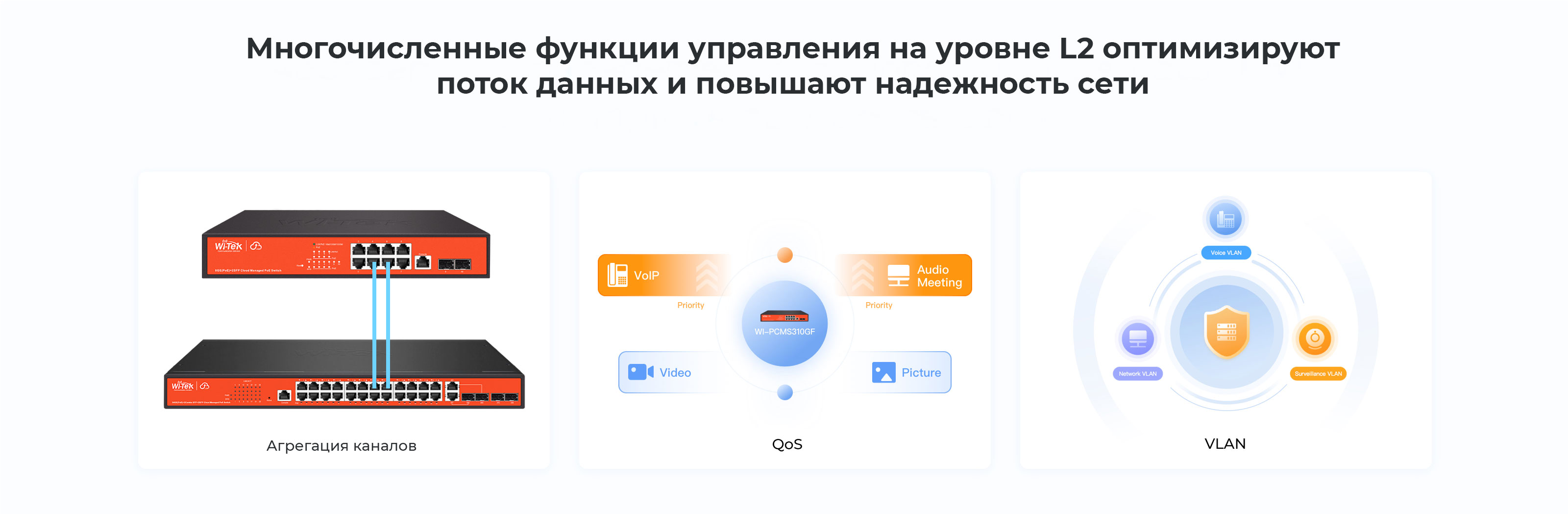

● Support IGMP Snooping, Link Aggregation, Loop Prevention
● QoS and IGMP snooping function optimize voice, video applications
● Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities

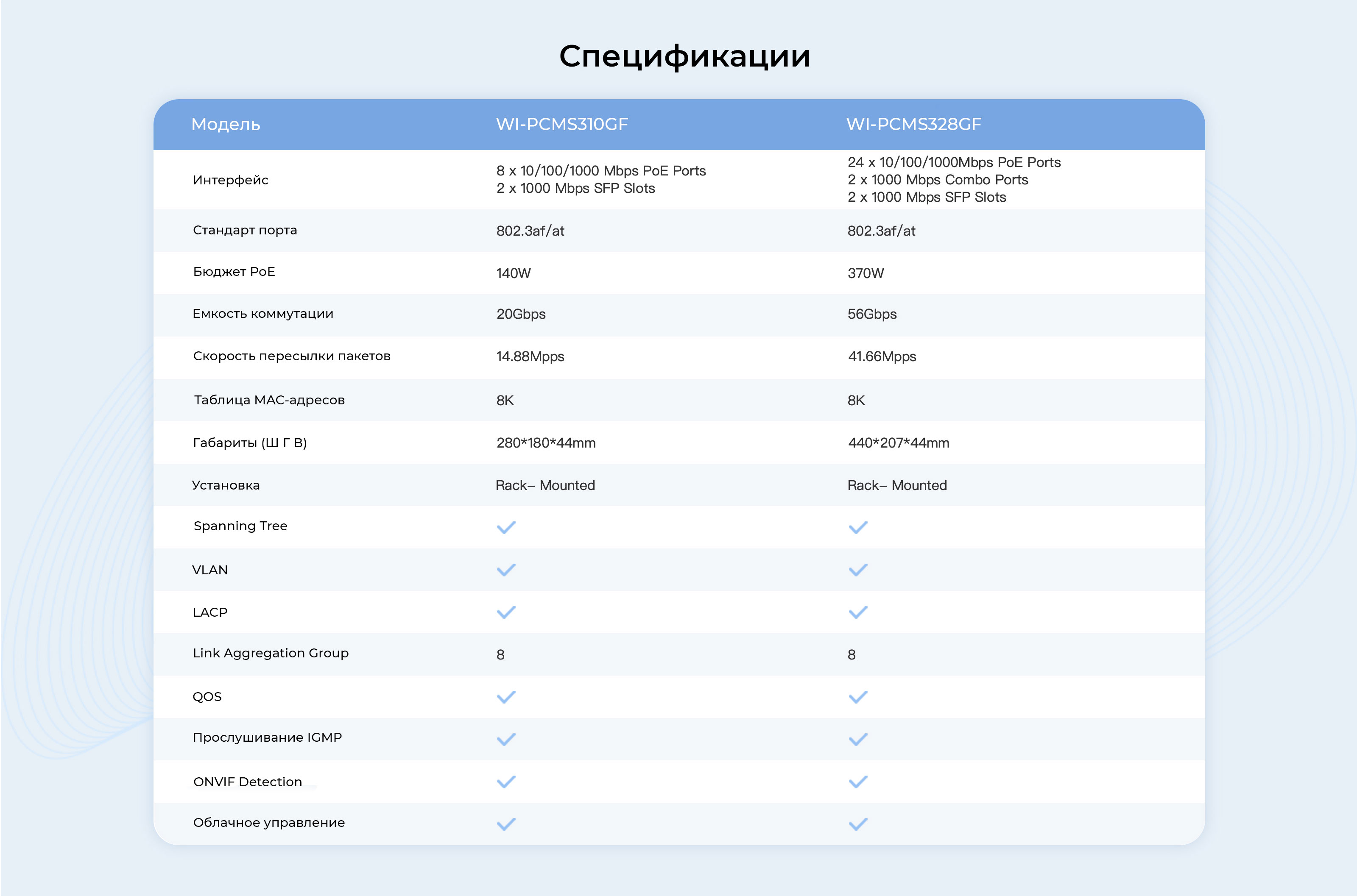

Hardware Specifications
Hardware Version			V1
Interface			8x10/100/1000Mbps RJ45 Ports 2xGigabit SFP Slots 1xConsole Port
Port Standard			IEEE 802.3 i:10BASE-T Ethernet; IEEE 802.3 u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber)
PoE	PoE Standard		802.3af/at
	PoE Ports		8 up to 32W
	PoE Power Budget		140W
Power Supply			100-240 V AC~50/60 Hz
Switching Capacity			20Gbps
Packet Forwarding Rate			14.88Mpps
Jumbo Frame			9KB
MAC Address Table			8K
Dimensions ( W x D x H )			28018044mm
Fan Quantity			1 Fan
Protection Level			Common Mode ± 6KV, Diﬀerential Mode ± 4KV
Electrostatic Standard			Contact 6KV Air 8KV
Transmission Mode			Store— Forward
Installation			Rack- Mounted
Software Features
Spanning Tree			IEEE 802.1D - STP
			IEEE 802.1w - RSTP
			IEEE 802.1s - MSTP
			BPDU Guard
			STP Root Guard
			Loop Detection
VLAN			Management VLAN
			Private VLAN
			Voice VLAN
			Monitor VLAN
			Q- in-Q
			Protocol- Based VLAN
			MAC- Based VLAN
Port		LACP
		Static
		EEE
		Jumbo Frame
		Error- Disable
