Hardware Specifications

Hardware Version

V1

Interface

16*10/100/1000Mbps RJ45 Ports

2*1000Mbps SFP Slots

Interface Port Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at

Power Supply

PoE 802.3 af/at

PoE Ports

16, up to 30W

PoE Power Budget

250W

Power Supply

AC 100-240V 50/60Hz 260W

Standby Power Consumption

115V 60Hz  17.6W

230V 50Hz  18.1W

Switching Capacity

36Gbps

Packet Forwarding Rate

26.78Mpps

Jumbo Frame

9216Bytes

MAC Address Table

8K, Auto-learning, Auto-aging

Fan Quantity

2Fan

RJ45 PoE Power Supply

Mode A 1/2(+) 3/6(-)

Dimensions( W x D x H )

440*207*44mm

LED indicator

PWR:Power indicator (steady green is normal)

1~16 port:(Data indicator is green)

1~16 port:(PoE indicator is yellow)

17~18 port:(The optical port indicator is

normal green)

Protection Level

Surge Protection: Diffdeferential mode ±2KV, Common mode ±4KV

Electrostatic Standard: Contact ±6KV, Air ±8KV

Protection class: IP30

Transmission Method

Store— Forward

Installation

Rack- Mounted

Environment

Operating temperature/humidity: 0°C ~ 40°C; 10%～90% RH no condensation

Storage temperature/humidity: -40°C～+70°C; 5%～95% RH no condensation

Software Features

System Management

Static IP

DHCP Client

Static DNS

DNS Client

Web-based Management

Telnet

WEB page software upgrade

Cable Testing

Security

IP MAC address binding

MAC Address Filter

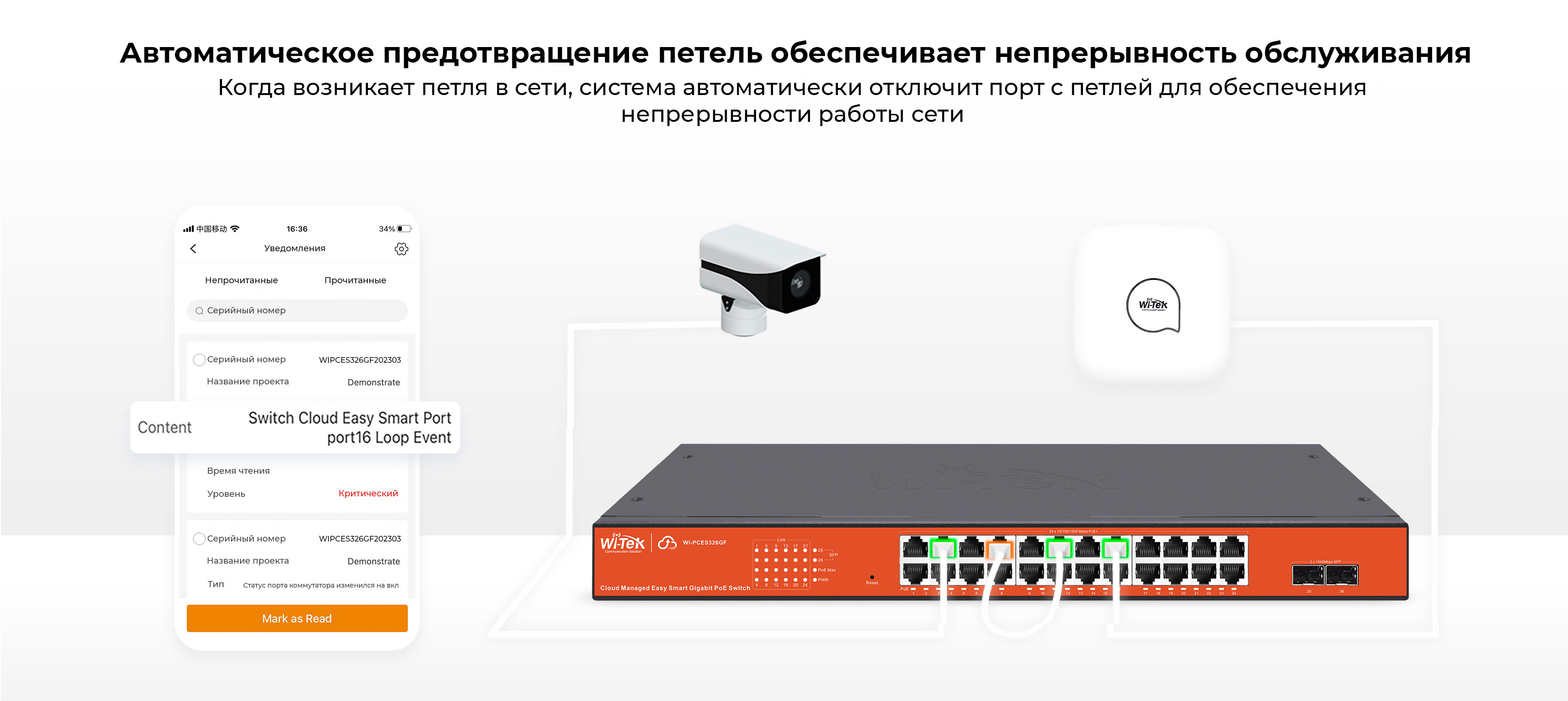

Loop Prevention

Loop Disabled Port

DHCP Snooping

VLAN

Port-based VLAN

VLAN : 16

Port

Port Flow Control

Broadcast storm suppression

Port Isolation

Many-to-one Port Mirroring

QoS(Port Speed Limit)

PoE

Enable/disable power supply

Mandatory power supply

PD Alive

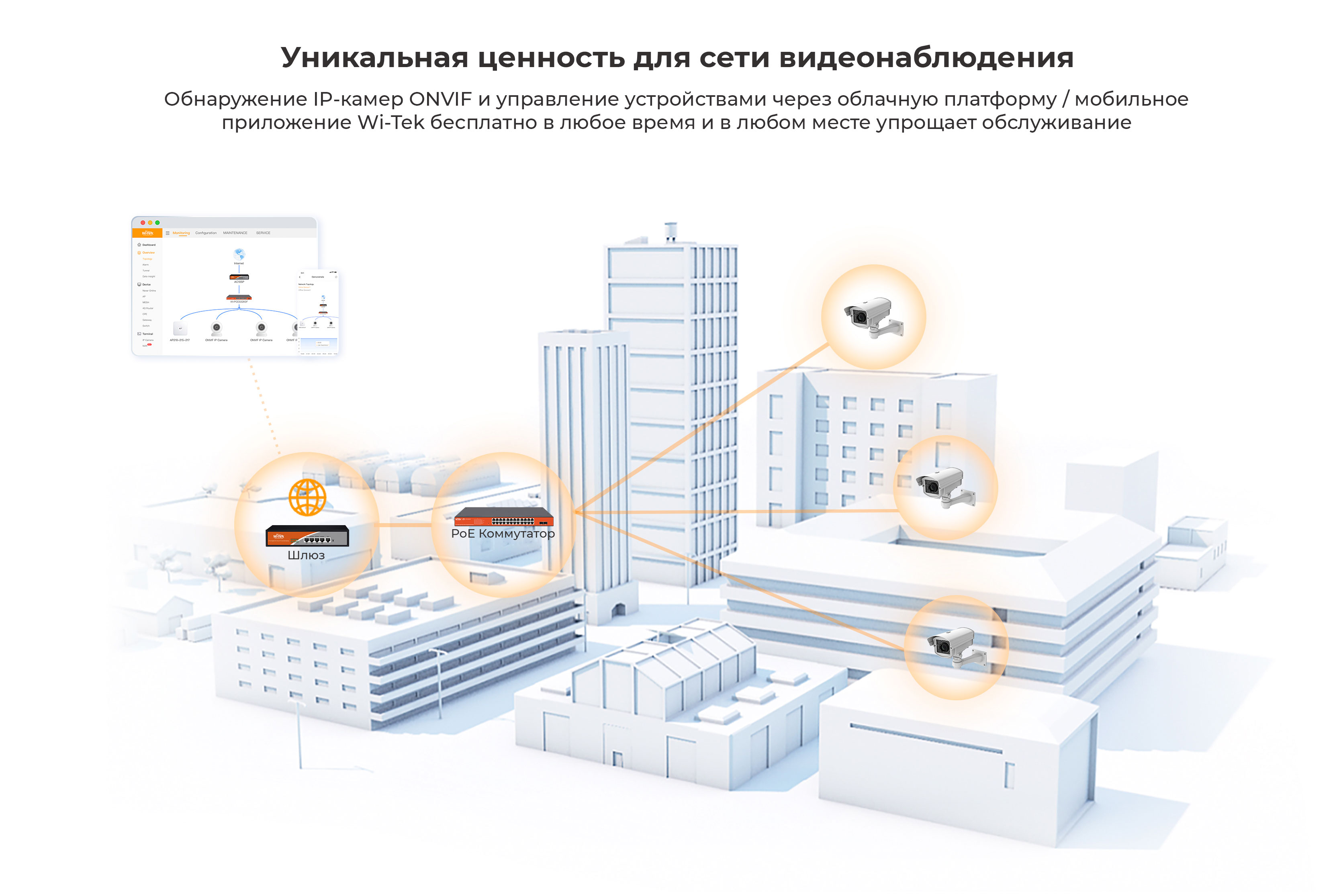

Onvif

Support cloud platform to automatically identify IP cameras

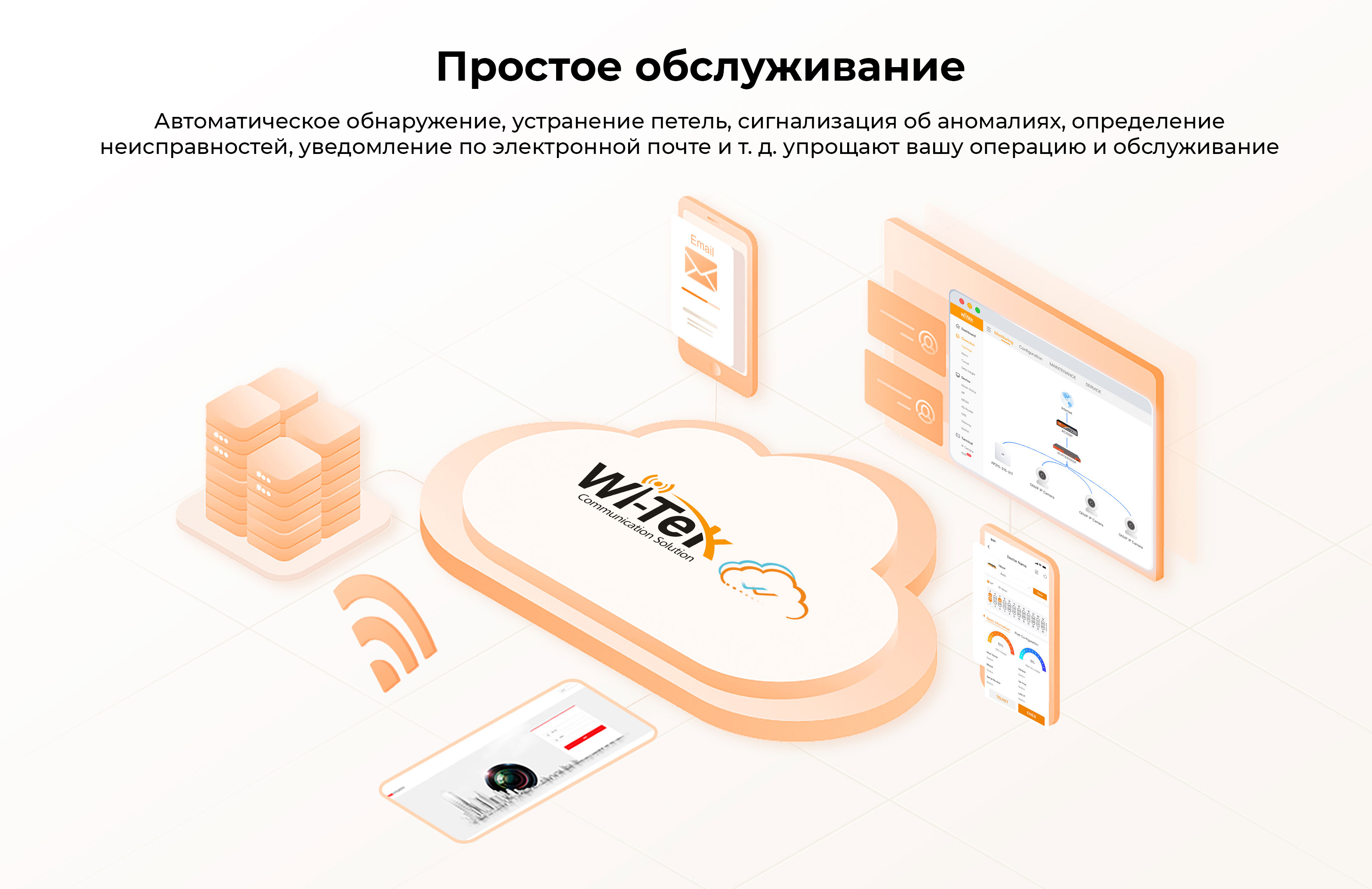

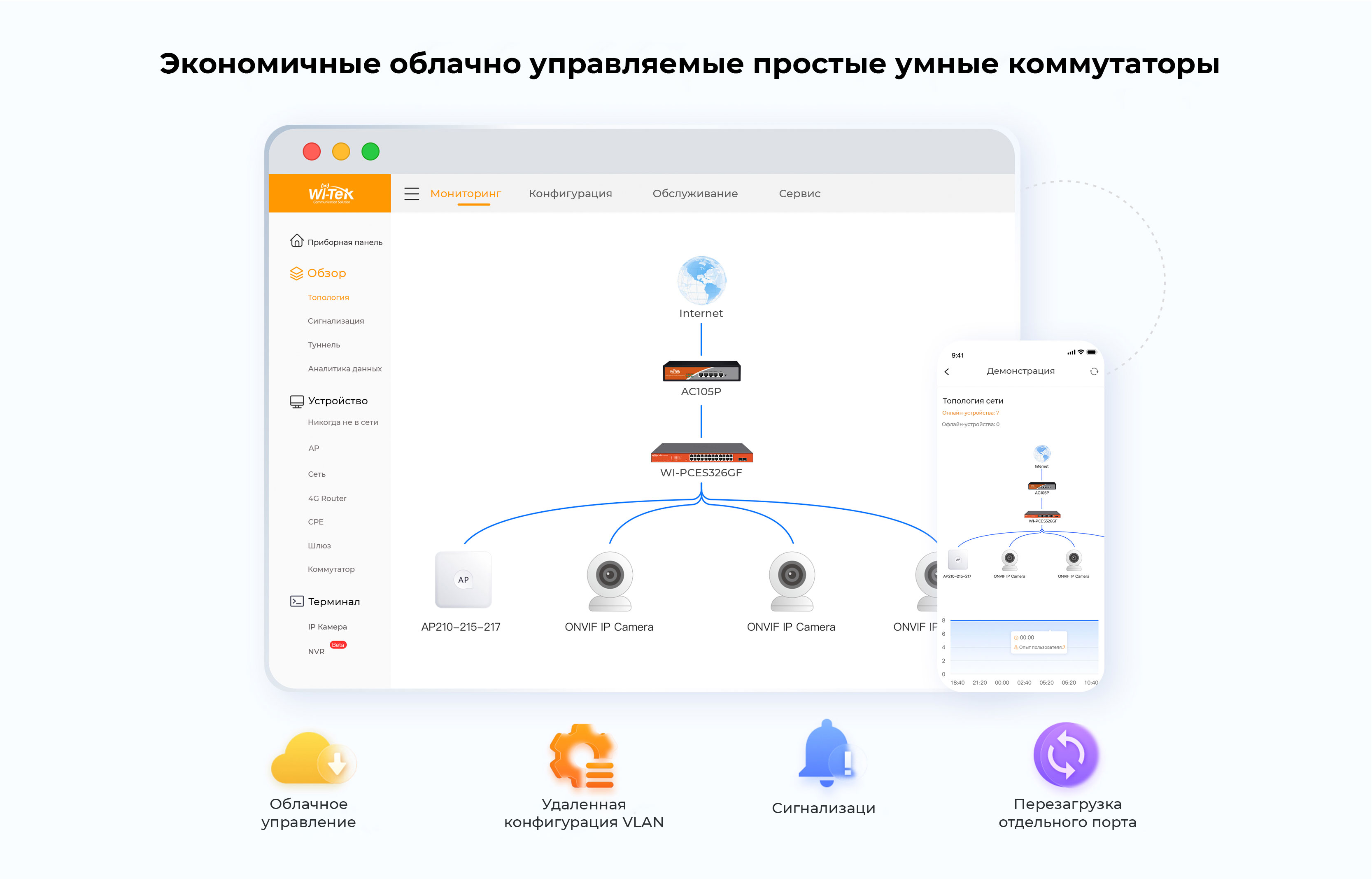

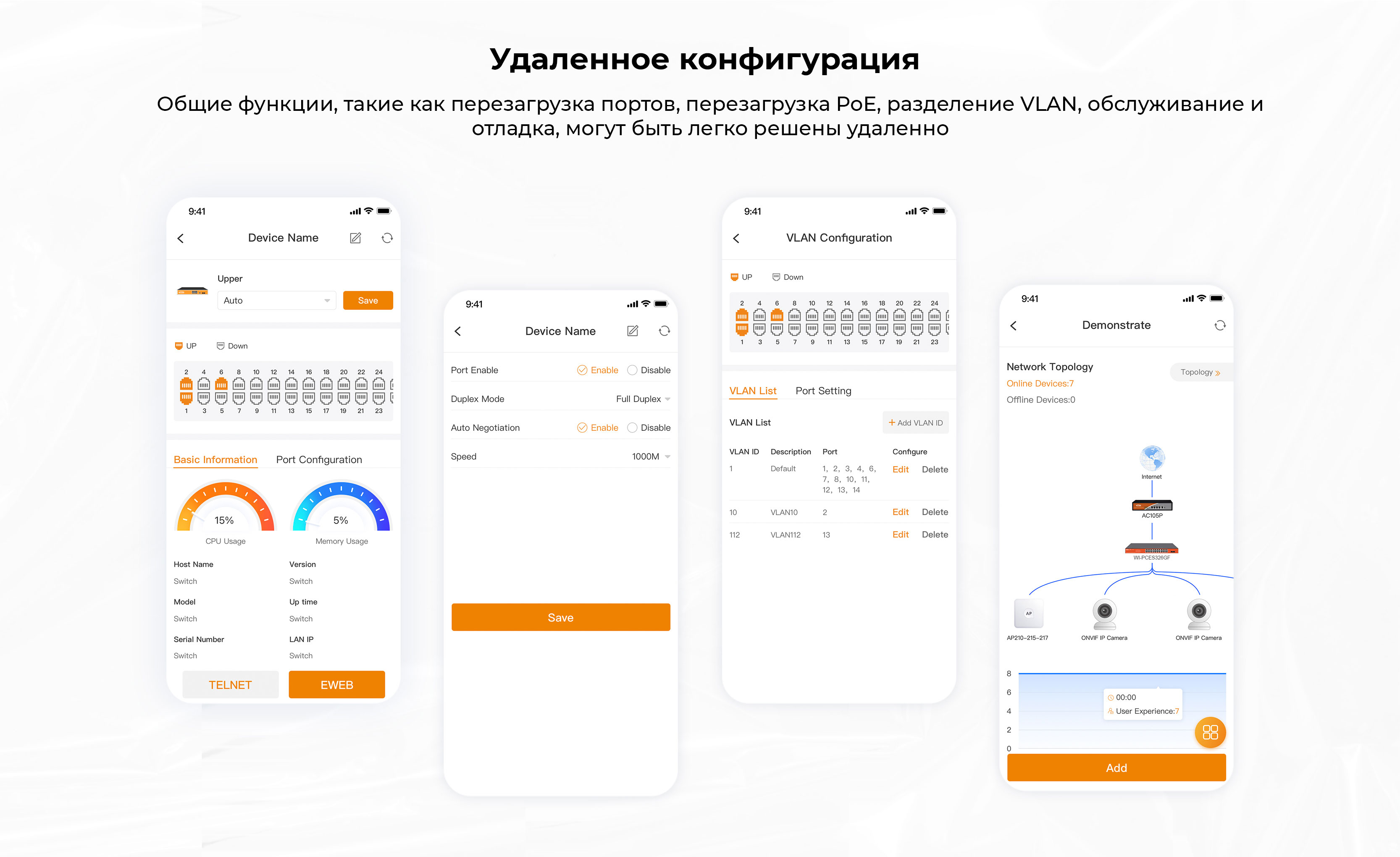

Cloud Management

Support Wi-Tek cloud platform management

Certification

CE, FCC, RoHS, UKCA

Package Contents

Switch X1PCS

Power cord X1PCS

Quick Installation Guide X1PCS

Rack Mount Kit X2PCS

Screw X8PCS

Feet X4PCS
