Hardware Specifications

Hardware Version

V1

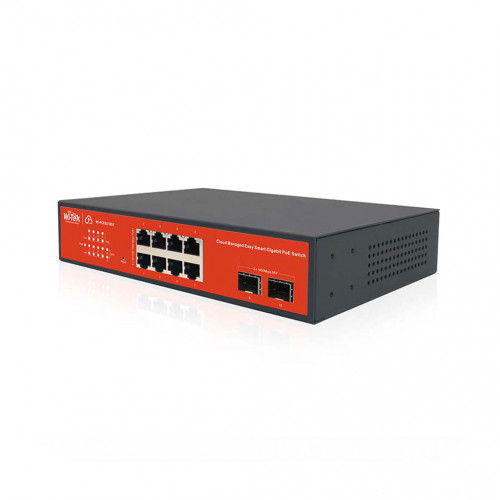

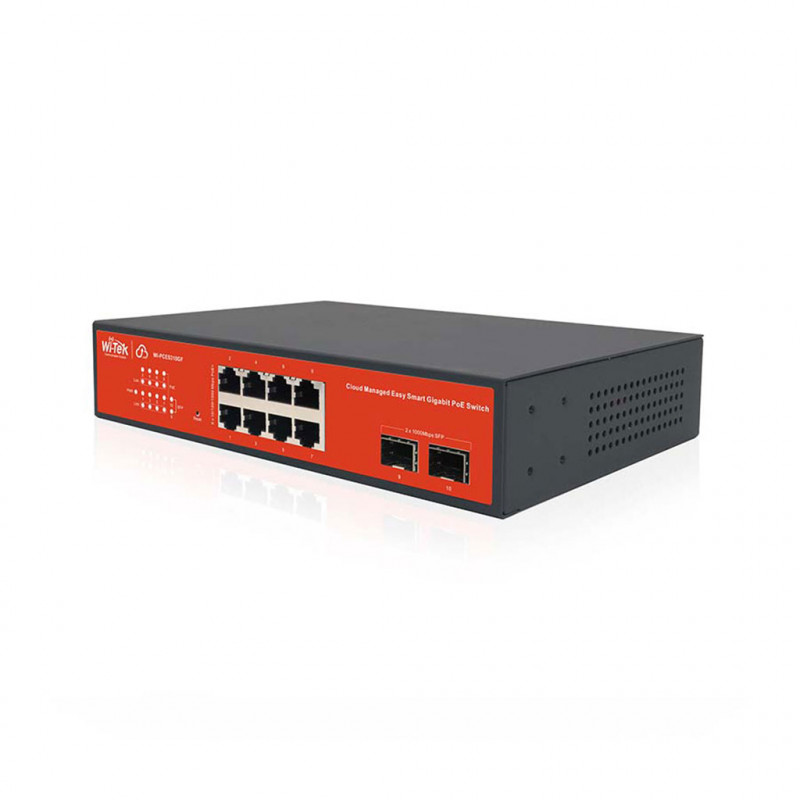

Interface

8*10/100/1000Mbps RJ45 Ports

2*1000Mbps SFP Slots

Port Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at

PoE

PoE Standard

802.3af/at

PoE Ports

8 up to 32W

PoE Power Budget

120W

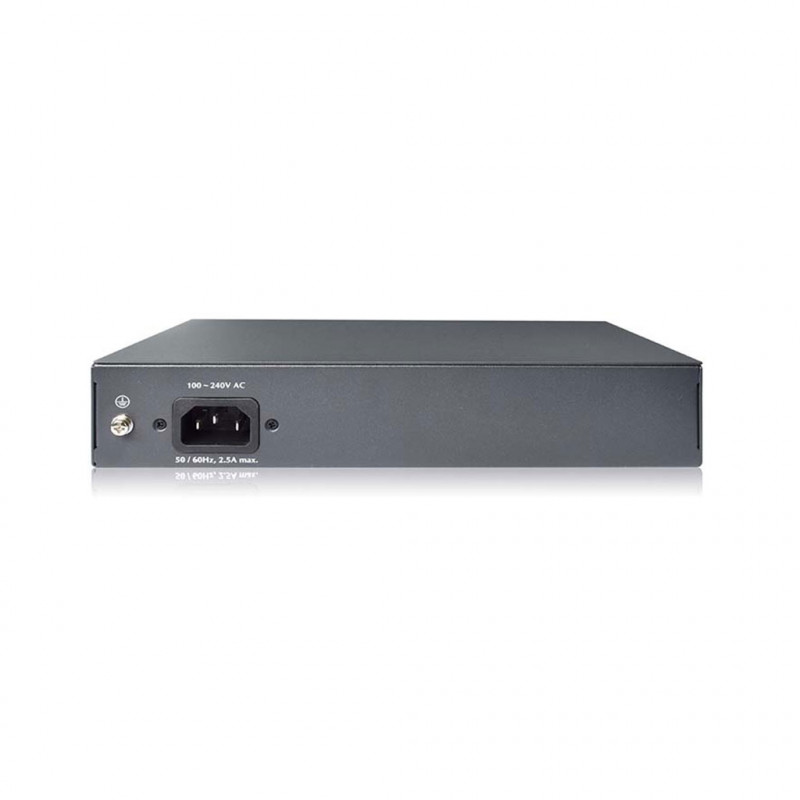

Power Supply

AC 100-240V 50/60Hz 130W

Standby Power Consumption

115V 60Hz-6.36W

230V 50Hz-6.73W

Switching Capacity

20Gbps

Packet Forwarding Rate

14.88Mpps

Jumbo Frame

9216Bytes

MAC Address Table

8K

LED indicator

PWR:Power indicator (steady green is normal)

1~8 port:(Data indicator is green）

1~8 port:(PoE indicator is yellow）

9~10 port:（The optical port indicator is normal green）

Dimensions ( W x D x H )

220*150*44mm

Fan Quantity

1

RJ45 PoE Power Supply

Mode A 1/2(+)3/6(-)

Protection Level

Surge Protection: Differential mode ±2KV, Common mode ±4KV

Electrostatic Standard: Contact ±6KV, Air ±8KV

Protection class: IP30

Transmission Mode

Store— Forward

Installation

Rack- Mounted

Software Features

System Management

Static IP

DHCP Client

Static DNS

DNS Client

Web-based Management

Telnet

WEB page software upgrade

Cable Testing

Security

IP MAC address binding

MAC Address Filter

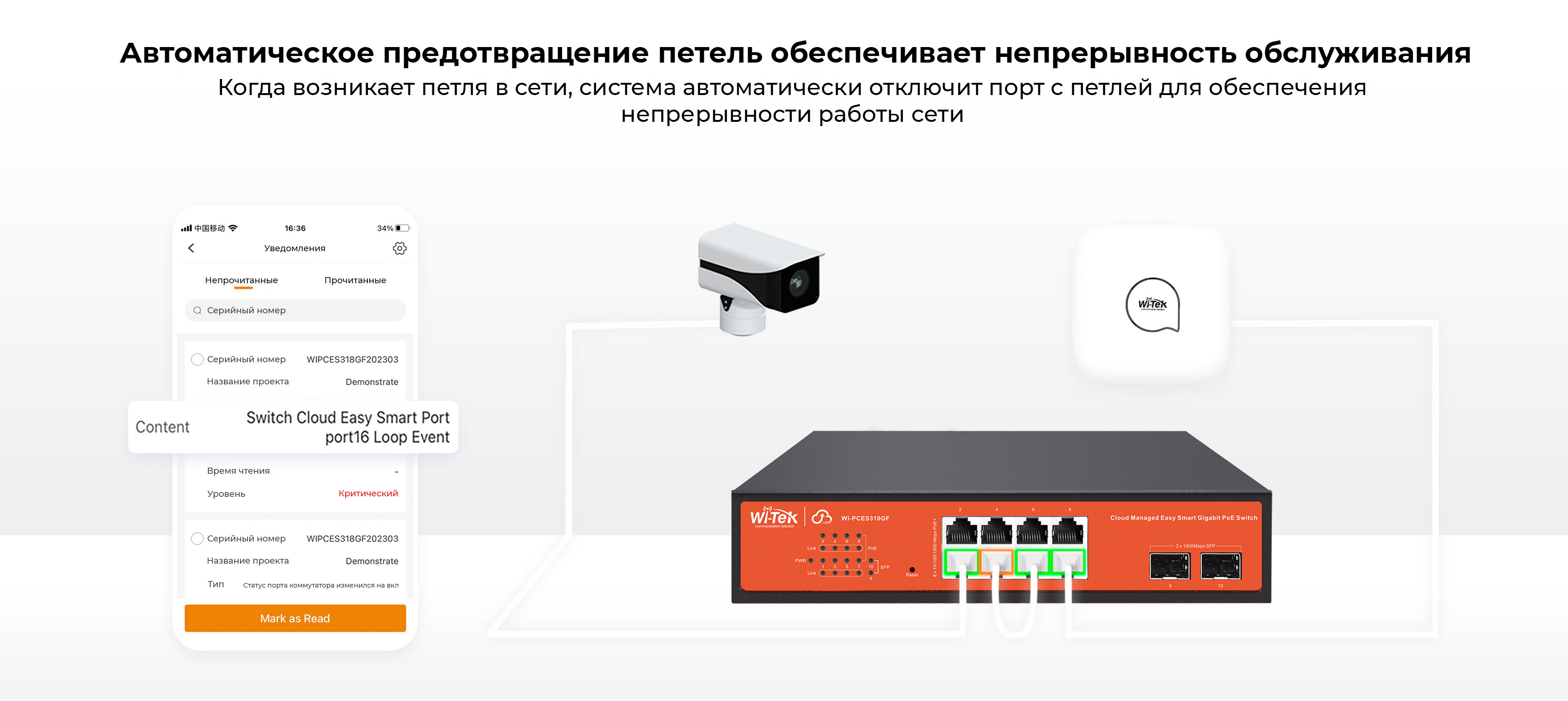

Loop Prevention

Loop Disabled Port

DHCP Snooping

 VLAN

Port-based VLAN

VLAN  : 16

Port

Port Flow Control

Broadcast storm suppression

Port Isolation

Many-to-one Port Mirroring

QoS(Port Speed Limit)

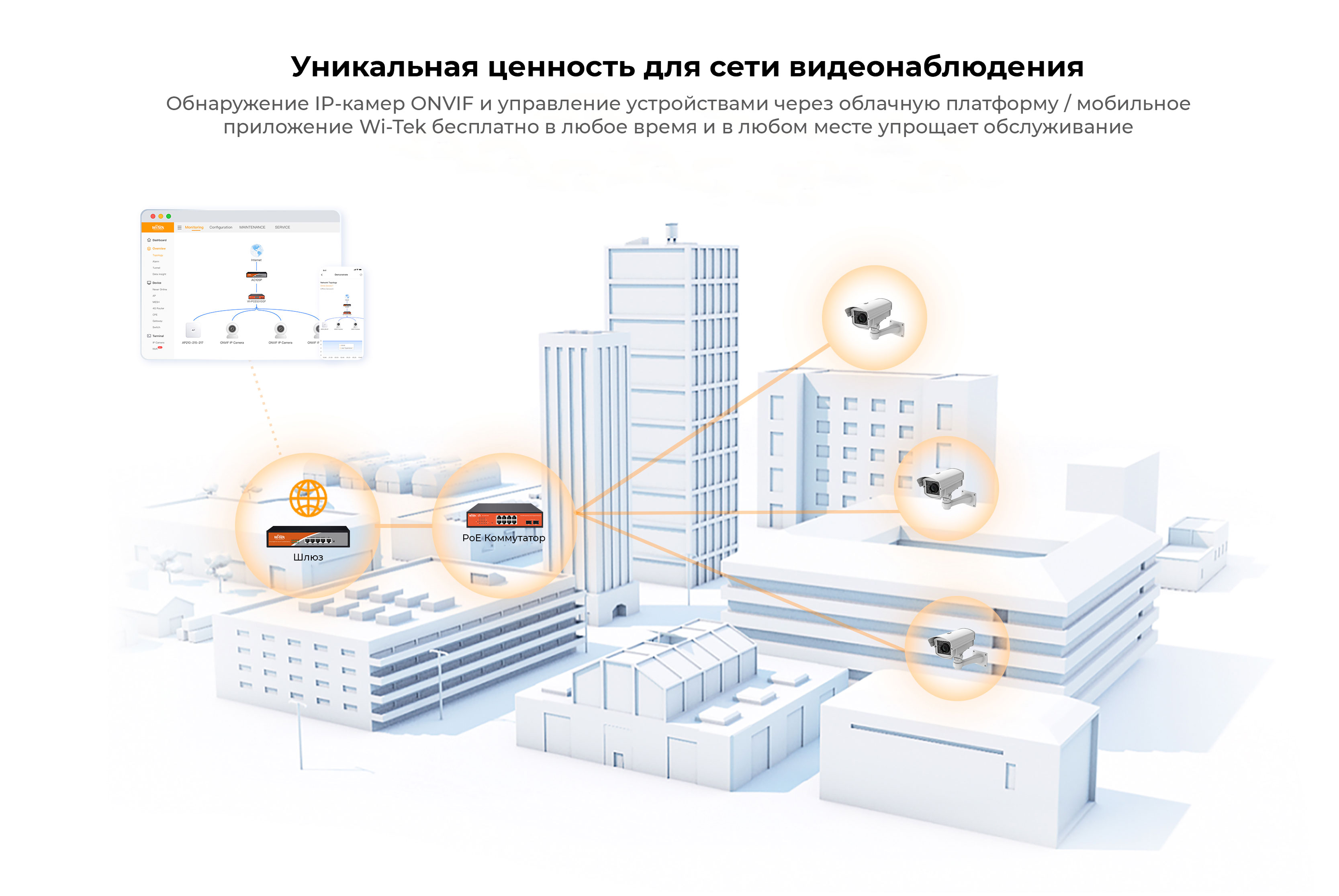

Onvif

Support cloud platform to automatically identify IP cameras

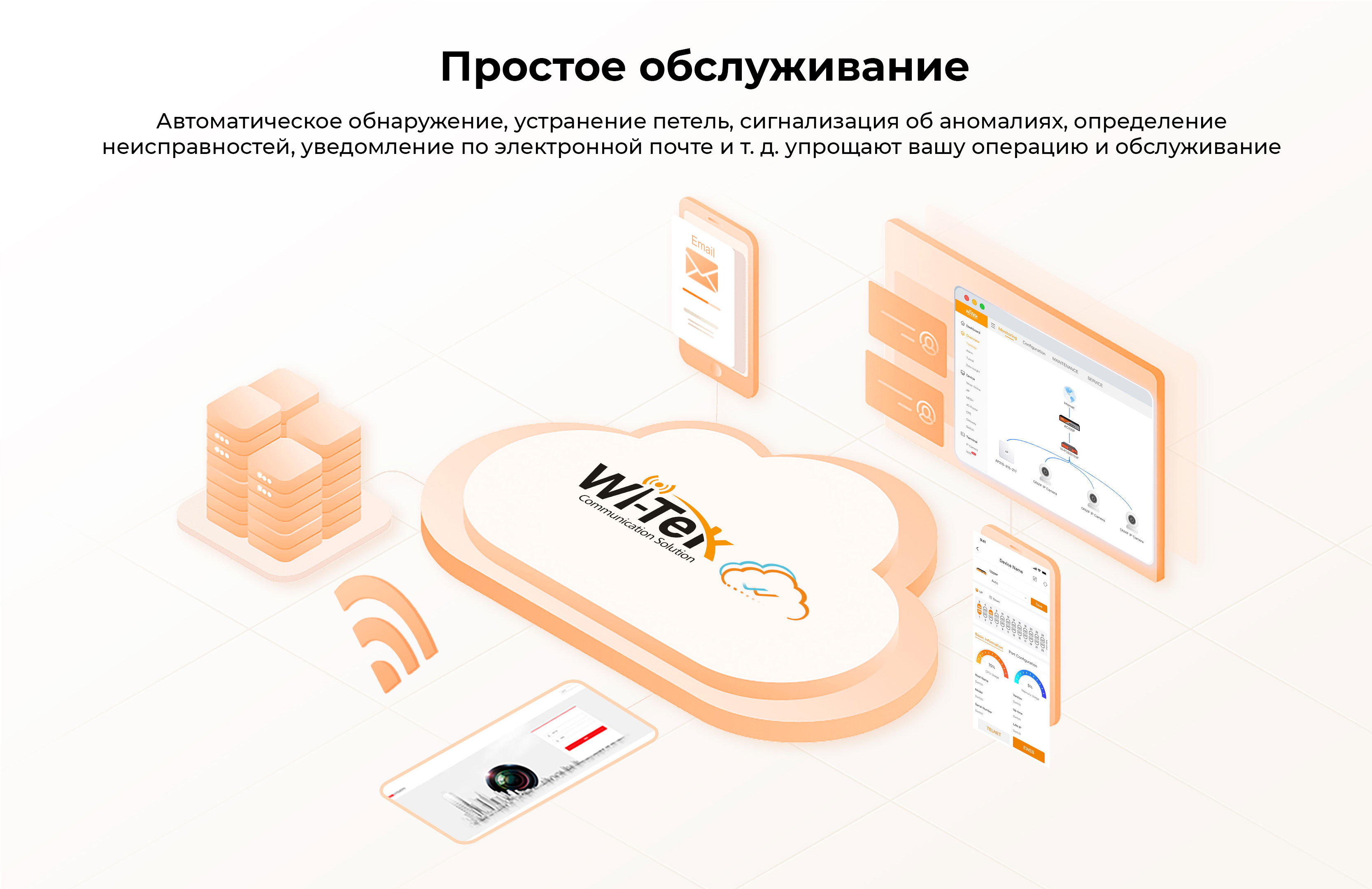

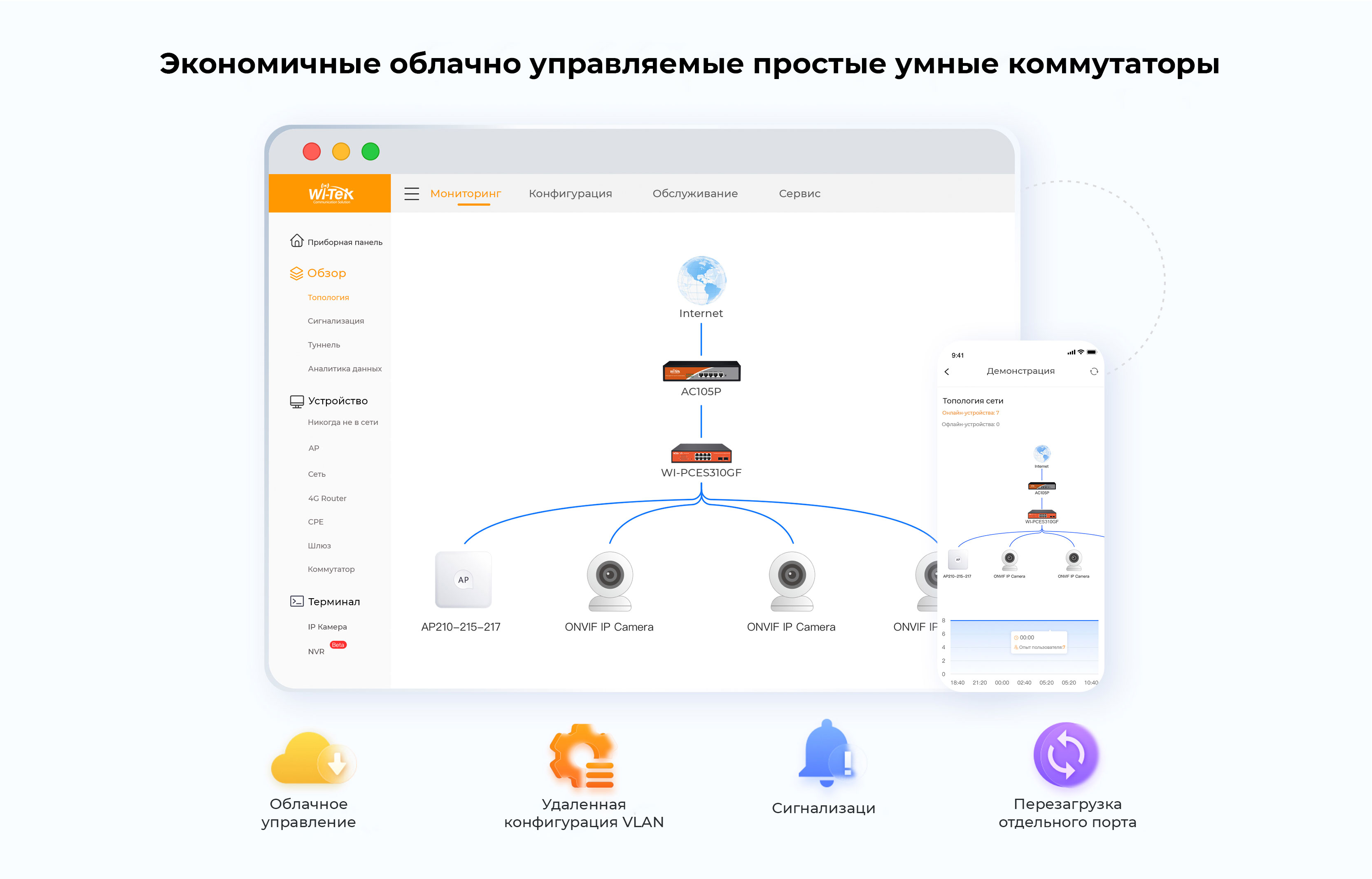

Cloud Management

Support Wi-Tek cloud platform management

Environment

Operating temperature/humidity: 0°C ~ 40°C; 10%～90% RH no condensation

Storage temperature/humidity: -40～+70°C; 5%～95% RH no condensation

Package Contents

Power cordX1, Switch X1, Quick Installation GuideX1

Certification

CE, FCC, RoHS,UKCA
