● 16 Gigabit PoE ports, 2 Gigabit Combo ports
● Supports IEEE 802.3af/at 30W PoE

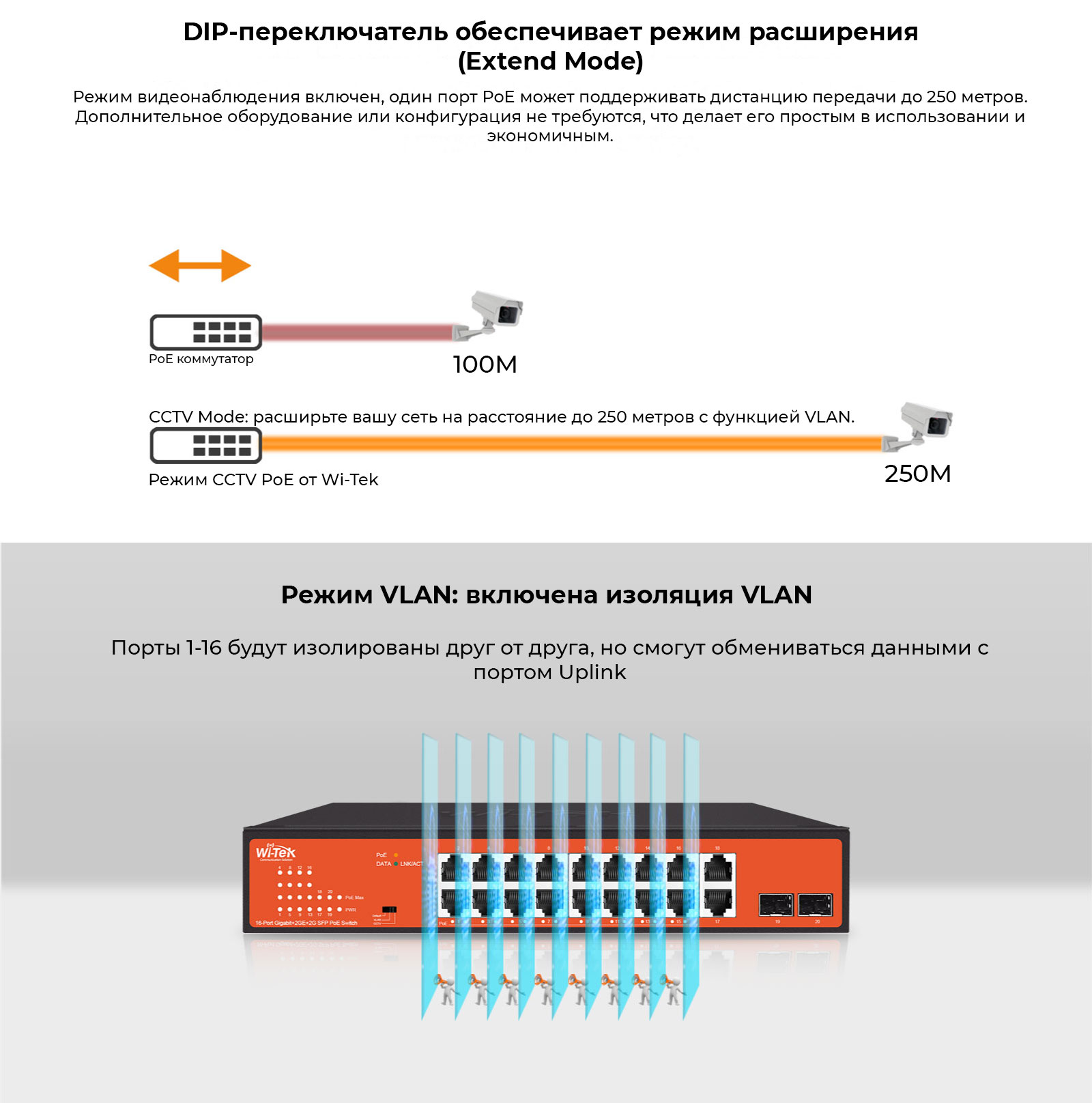

● CCTV Mode supports 250m long distance and port isolation function

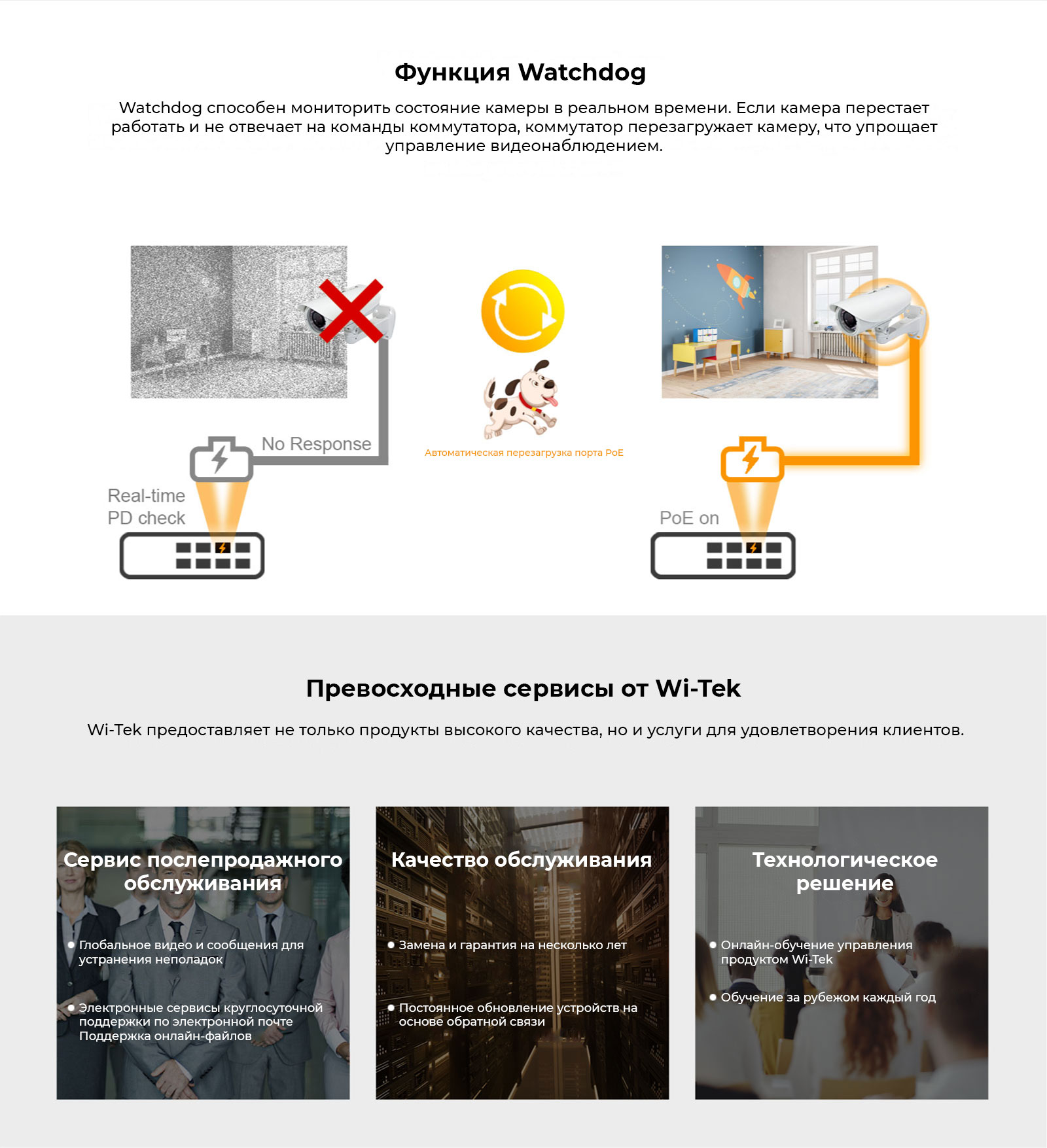

● PoE watchdog detects, reboots unresponsive PoE-powered devices
● PoE power budget can be up to 200W
● Plug and play with no configuration required
HARDWARE FEATURES
|
|
Hardware Version
| V1
|
Interface
| 16 1000Mbps RJ45 PoE Ports 2 1000Mbps Combo Ports
|
Network Media
| 10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m) 100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m)
|
Fan Quantity
| 1 ×Fan
|
Power Supply
| AC 100~240V 50/60HaZ
|
PoE Standard
| 802.3 af/at compliant PoE
|
PoE Ports
| Port 1- 16
|
PoE Power Budget
| 200W
|
Mac Address Table
| 4k
|
Packet Forwarding Rate
| 26.79Mpps
|
Jumbo Frame
| 10kB
|
Protection Level
| Lightning protection 6KV 6KV ESD Contact discharge
|
Package Dimension
| 370×230×80 mm
|
Switch Dimension
| 280×180×45 mm
|
Gross Weight
| 2.45kg
|
Net Weight
| 1.8kg
|
Package Content

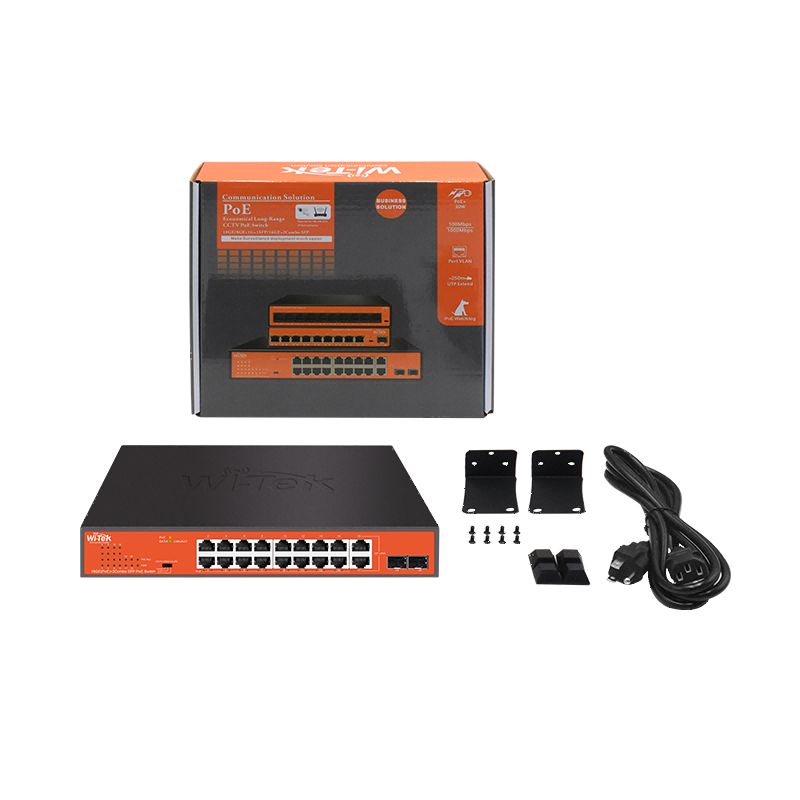

| 1 × Switch 1 × Power cord 1 × Rackmount Kit 1 × Quick Installation Guide
|
SOFTWARE FEATURES
|
|
Transmission Method
| Store - And - Forward
|
Advanced Functions
| Watchdog Function Mac Address Auto- Learning Auto-Aging Store and forward IEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex Mode
|
OTHERS
|
|
Certification
| CE , FCC , RoHS
|
Environment

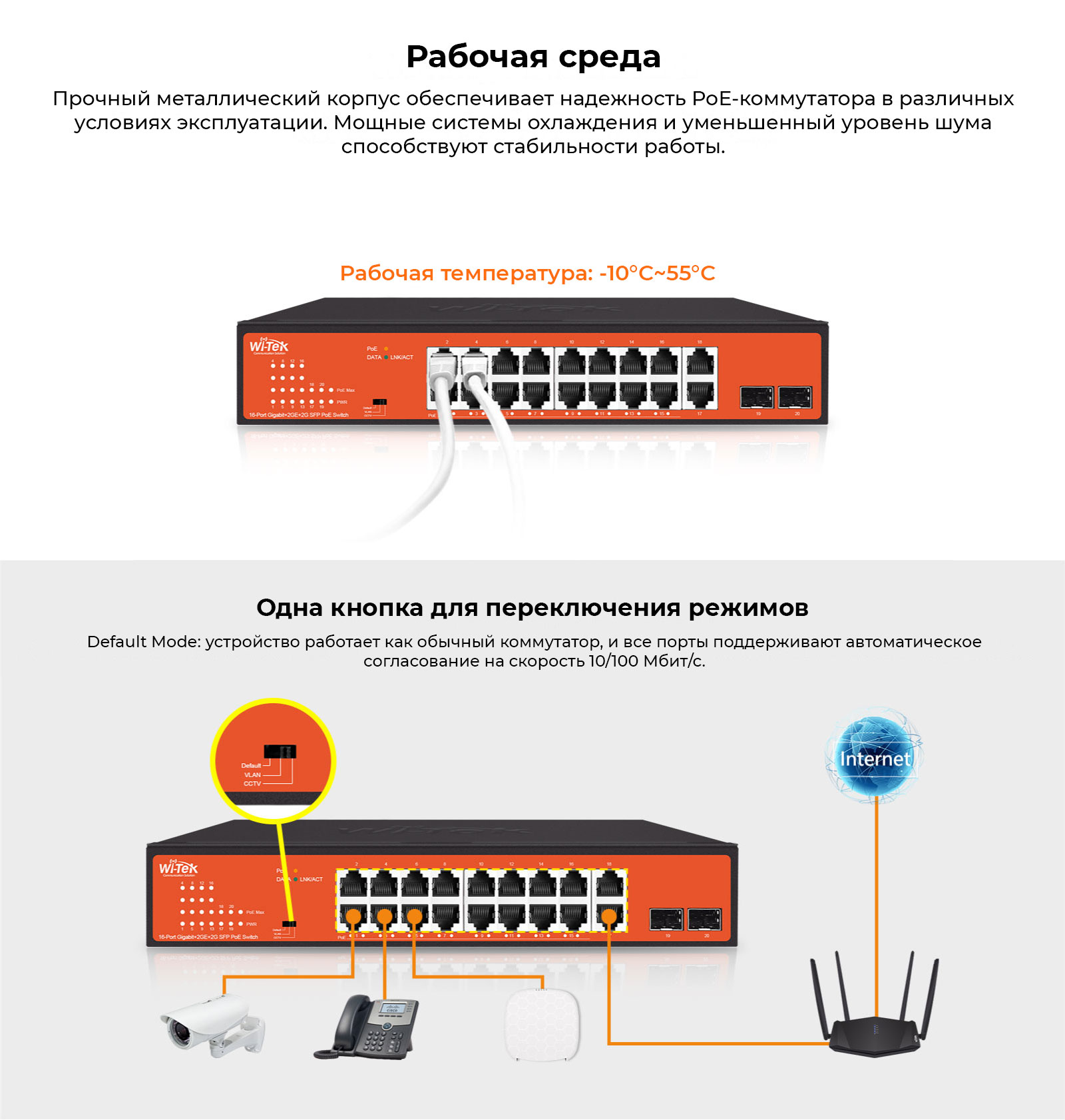

| Operating Temperature: -10℃–55℃ (14℉–131℉) Storage Temperature: -40℃–70 ℃ (-40℉–158℉) O perating H umidity: 10– 90% RH non-condensing Storage H umidity: 5– 90% RH non-condensing
|
