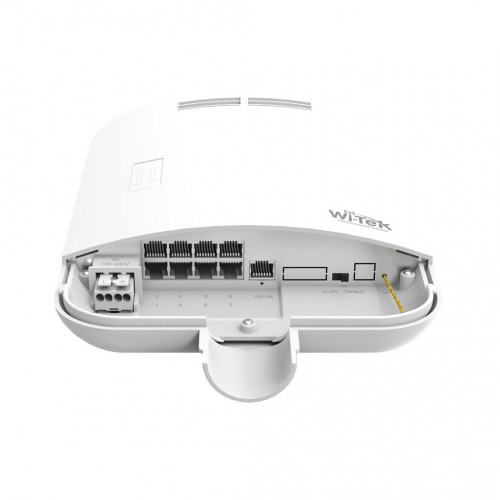

WI-PS209-O

Hardware Features

Hardware Version

 V1

Interface

8 10/100Mbps RJ45 PoE Ports

1 10/100Mbps Uplink Port

PoE Ports



Port 1- 4: 802.3af/at

（Working Mode: Default or VLAN）

Network Media

10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m)

100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m)

1000BASE-TX: 6 Category and above UTP(≤150m)

Power Supply

AC 100-240V 50-60Hz

Power Budget

120W

Exchange Capacity

1.8Gbps

Packet Forwarding Rate

1.34Mpps

Mac Address Table

4k

Protection

6kV PoE Surge Protection

10kV AC Surge Protection

Jumbo Frame

10240Bytes

SOFTWARE FEATURES

Advanced Functions

Mac Address Auto-Learning And Auto-Aging

Store and forward

IEEE 802.3x flow control for Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

370×240×76 mm

Switch Dimension

215×345×48 mm

Gross Weight

1.5kg

Net Weight

1.35kg

Package Contents

1× PoE Switch

1× Pole mounting KIT

1× Quick Installation Guide

Environment

Working Temperature: -30℃~70℃(22℉~158 ℉)

Storage Temperature: -40℃~70 ℃ (-40~158 ℉)

Operating Humidity: 10~90% RH non-condensing

Storage Humidity: 5~90% RH non-condensing
