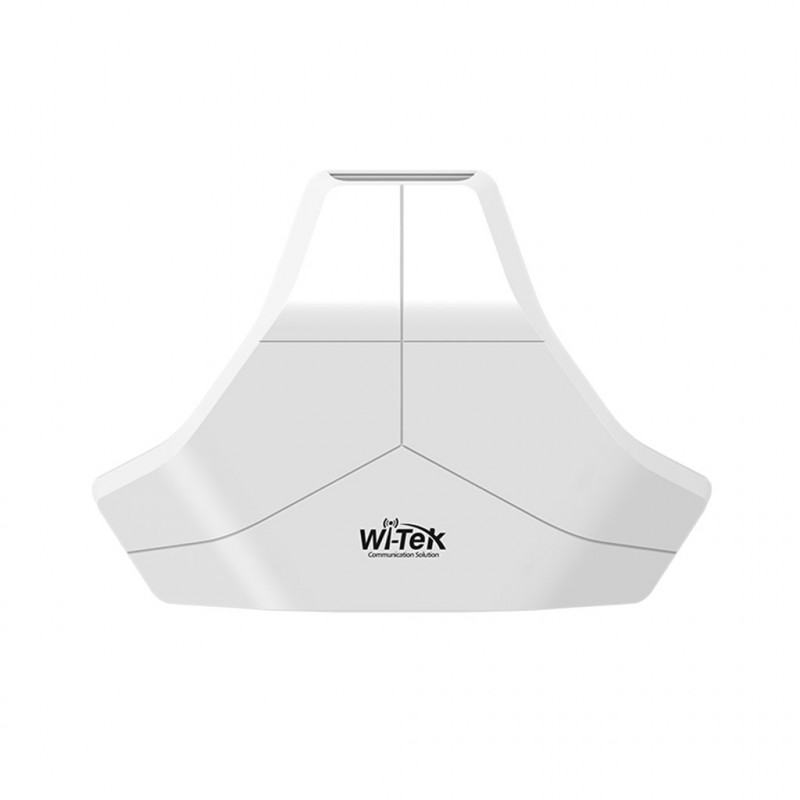

· 802.11AX 2.4G&5.8G 1800M Indoor Wireless Mesh AP
· Wi-Fi 6 Speeds: 574Mbps on 2.4GHz +1201Mbps on 5.8Ghz
· MTK chipset 128MB DDR3, 16MB Flash, 19dBm Tx Power,access 100users
· 4*4dB inside antenna
· Support (3)10/100/1000M RJ45 ports
· Support 1 PoE Input with 802.3af/at/bt + 2 PoE Output with 802.3af/at
· Support Mesh networking design for big area Wireless Coverage
· Support Cloud Managed
· 48V 30W Gigabit PoE Adapter Included
Model
|
WI-AP719MP
|
|
Hardware Specifications
|
|
Wireless Standards
|
IEEE 802.11 ax/ac/n/b/g/a
|
|
Operating Bands
|
2.4GHz & 5GHz
|
|
Spatial Streams
|
2.4GHz: 2x2 MIMO 5GHz: 2x2 MIMO
|
|
Antenna
|
2.4GHz: 4dBi; 5GHz: 4dBi
|
|
Power Consumption
|
<10W
|
|
Signal Rate
|
Up to 574 Mbps at 2.4GHz
Up to 1201 Mbps at 5GHz
|
|
Interface
|
(3)10/100/1000M Base-T LAN Ethernet ports
|
|
PoE Port
|
1*PoE In+2*PoE Out
|
|
Power Supply
|
802.3bt PoE Supported; DC 12V/1.5A
|
|
Maximum Transmit Power
|
19dBm
|
|
External buttons
|
reset button (long press for 8 seconds
to restore the factory default configuration)
|
|
Dimensions
|
270mm * 190mm * 68mm
|
|
Environment
|
Operating Temperature: -10°C～55°C
Storage Temperature: -40°C～70°C
Operating Humidity: 5% ～ 95% (non-condensing)
Storage Humidity: 5% ～ 95% (non-condensing)
|
|
Software Features
|
|
Operating Mode
|
Router Mode and AP Mode
|
|
Internet Connection Type
|
Static IP, DHCP, PPPoE Dial Up
|
|
Network Security
|
Guest Wi-Fi；Hide SSID；Wi-Fi Isolate
|
|
Parental Control; IP/MAC binding
|
|
Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE
|
|
Advanced Features
|
Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices.
|
|
Wi-Fi optimization: Wi-Fi roaming, channel adjustment, power adjustment
|
|
Firewall: Forbid TCP/UDP flood attack
|
|
Application: Port Forwarding; SD-LAN; Open VPN;
|
|
Software upgrade: Firmware upgrade online or
Firmware upgradeable via browser
|
|
Diagnostics Utilities: Ping; IPV4 Traceroute; Nslookup
|
|
Management and
Maintenance
|
Support local management with web
Support remote management with Wi-Tek Cloud platform
|
