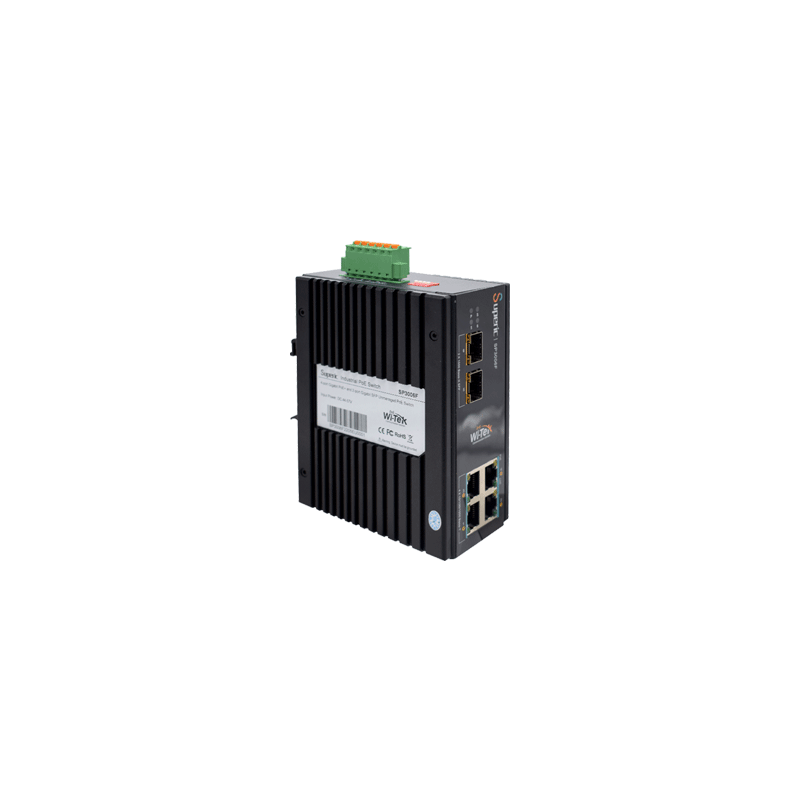

Model

SP3006F

Interfaces

Downlink Ports

4*10/100/1000 Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

Uplink Ports

2*1000 Base-X SFP

Alarm Port

One power failure alarm relay output port. Alarm relay current carry ability: 1A@24VDC

PoE

PoE Standard

IEEE 802.3af/at (PSE)

PoE Power Supply Type

End-span

PoE Pin Assignment

1/2(+)，3/6(-)

PoE Power Output

46~55V DC

PoE Power

30W max for each port, 120W max

Switch Property

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3af Power-Over-Ethernet

IEEE 802.3at Power Over Ethernet Plus PSE

Forwarding Modes

Store and Forward

Packet Buffer

2Mbit

MAC Table

16k

Switching Capacity

12Gbps

Packet Forwarding Rate

8.9Mpps

Jumbo Frame

10kB

Power Supply

Input Voltage

Power 1 (Main): 44~57V DC, Power 2 (Backup): 44~57V DC

Power Consumption

Full loading without PoE ≤ 6W

PoE power budget ≤ 120W

Connector

Removable 6-pin terminal block

Reverse polarity protection

Support

Over-voltage protection

Support

Over-current protection

Support

Environmental Reliability

Industrial standard

EMI：FCC Part 15B Class A

Surge protection of power: IEC 61000-4-5 6KV/4KV（8/20us）

Surge protection of Ethernet ports：IEC 61000-4-5 6kV/2kV（10/700us）

RS: IEC 61000-4-3 80 MHz-1 GHz：10 V/m

EFT: IEC 61000-4-4 power interface: 4kV；Ethernet ports: 2kV

CS: IEC 61000-4-6 10V

ESD: IEC 61000-4-2 Level 4（8k/15k）

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Operating Temperature

-40℃~75℃

Storage Temperature

-40℃~85℃
